Inductive Sensor
SKU: BI2.5-EG16CA-FDZ32X2
G 5/8″ · 2.5 mm · Flush · Cable
$254.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

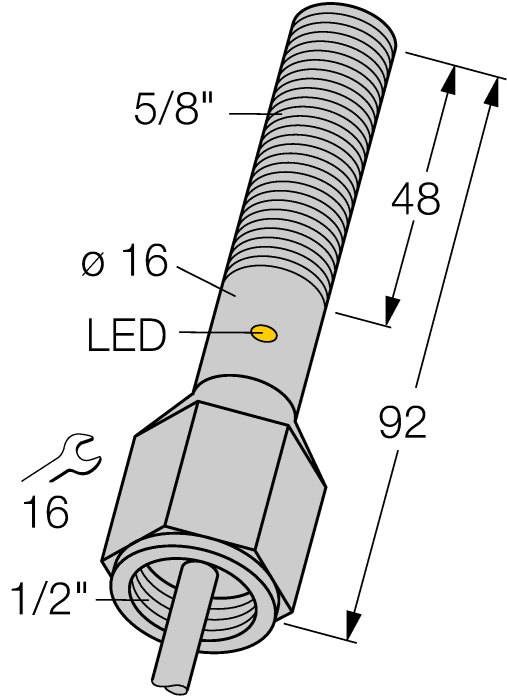

Inductive Sensor
- Threaded barrel, 5/8"
- Stainless steel, 1.4401
- AC 2-wire, 20…250 VDC
- DC 2-wire, 10…300 VDC
- Programmable via connection
- Cable connection
The Turck Inductive Sensor # BI2.5-EG16CA-FDZ32X2 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 381.52 g |
| Design | Threaded barrel |
| Construction size | G 5/8″ |
| Rated switching distance | 2.5 mm |
| Mounting | Flush |
| Operating voltage | 20…250 VAC / 10…300 VDC |
| Output function | Connection programmable, 2-wire |
| Switching frequency | 0.060 kHz |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Metal, 1.4401 (AISI 316) |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
