Inductive Sensor - With Analog Output
SKU: BI15-Q20-LIU-H1141

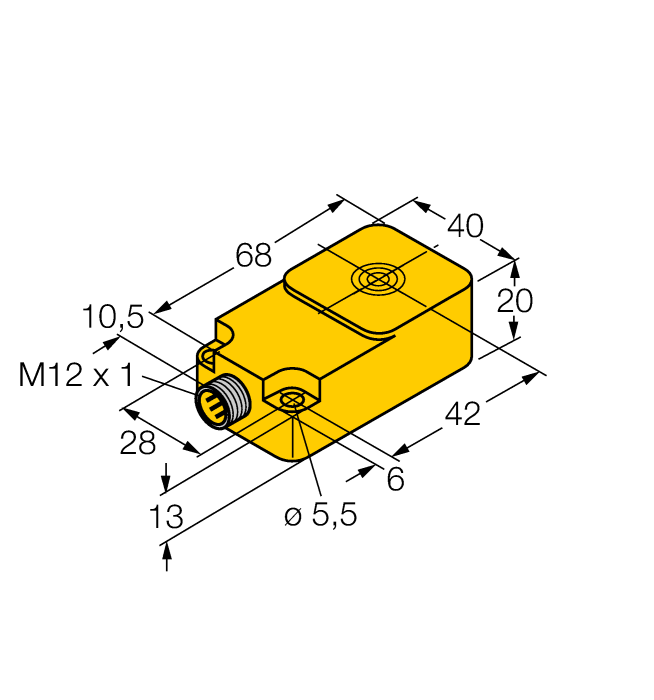

68 x 40 x 20 mm, Q20 · Flush · Connector, M12 × 1
$343.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor — With Analog Output
- Rectangular, height 20 mm
- Active face on top
- Plastic, PBT-GF30-V0
- 4‐wire, 15…30 VDC
- Analog output
- 0…10 V and 0…20 mA
- M12 x 1 male connector
The Turck Inductive Sensor - With Analog Output # BI15-Q20-LIU-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101071726 |
| eCl@ss-Code (V5.1.4) | 27270802 -/- Indcutive distance sensor |
| Customs tariff number | 3926909989 |
| Country of origin | DE |
| Weight | 105 g |
| Design | Rectangular |
| Construction size | 68 x 40 x 20 mm, Q20 |
| Measuring range | 4…11 mm |
| Mounting | Flush |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Current output | 0…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PBT-GF30-V0 |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
