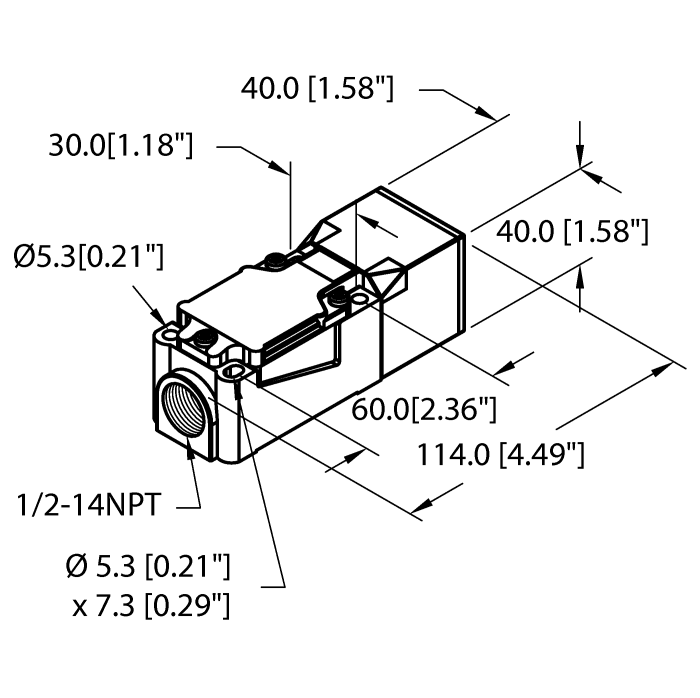

Inductive Sensor - With Extended Temperature Range (BI15-CP40-FZ3X2/S10-S97)
Turck

Inductive Sensor - With Extended Temperature Range, 114 x 40 x 40 mm (CP40), 15 mm Switching Distance, Flush, 20…250 VAC / 10…300 VDC, 2-Wire Connection Programmable, Terminal Chamber

SKU: BI15-CP40-FZ3X2/S10-S97

$427.00

List price.

Authorized Dealer
Nationwide Shipping
Expert Support

114 x 40 x 40 mm, CP40 · 15 mm · Flush · Terminal chamber

Inductive Sensor — With Extended Temperature Range

  • Rectangular, height 40 mm
  • Variable orientation of active face in 9 directions
  • Plastic, PBT‐GF30‐V0
  • High luminance corner LEDs
  • Optimum view on supply voltage and switching state from any position
  • Temperatures up to -40 °C
  • AC 2-wire, 20…250 VAC
  • DC 2-wire, 10…300 VDC
  • Programmable connection (NC or NO)
  • Terminal chamber

The Turck Inductive Sensor - With Extended Temperature Range, 114 x 40 x 40 mm (CP40), 15 mm Switching Distance, Flush, 20…250 VAC / 10…300 VDC, 2-Wire Connection Programmable, Terminal Chamber BI15-CP40-FZ3X2/S10-S97 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
