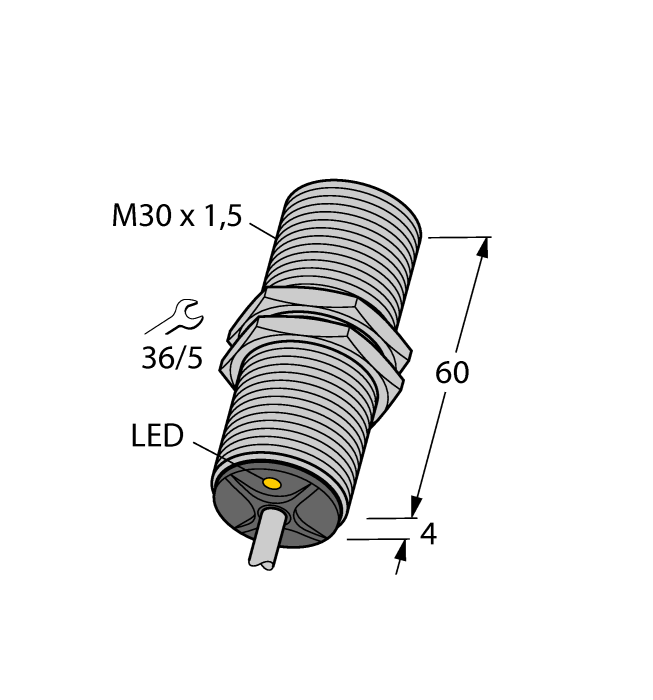

Inductive Sensor — With Extended Temperature Range
- Threaded barrel, M30 x 1.5
- Chrome-plated brass
- Temperatures up to -40 °C
- Supply voltage 10…30 VDC
- Potential-free semiconductor output, galvanically isolated, NO
- Output power max. 300 W (6 A, 50 VDC / 35 VAC)
- Cable connection
The Turck Inductive Sensor - With Extended Temperature Range # BI12-G30-AM6/37X/S97 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101196139 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 312.52 g |
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Rated switching distance | 12 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, Potential-free |
| Switching frequency | 0.020 kHz |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67 |
