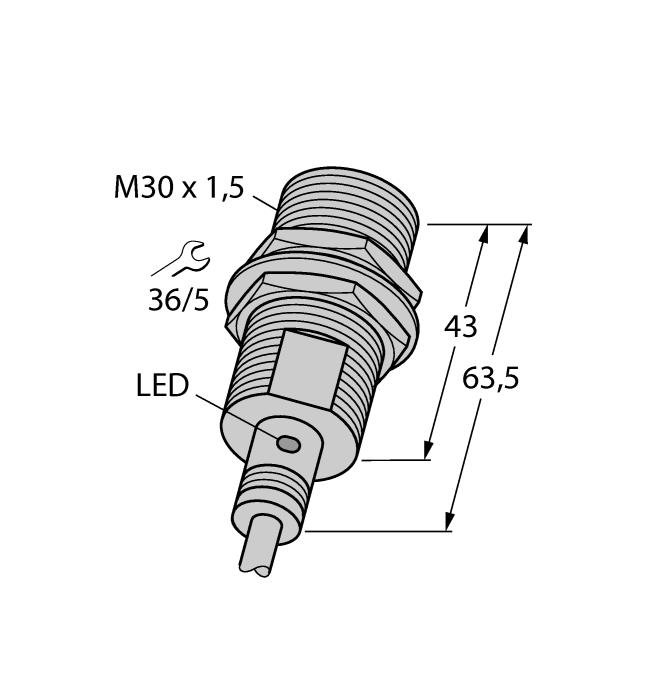

Inductive Sensor - Stainless Steel Front
SKU: BI12-EG30F-AG6X
M30 x 1.5 · 12 mm · Flush · Cable
$230.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor — Stainless Steel Front
- Threaded barrel, M30 x 1.5
- Stainless steel, 1.4305
- DC 2-wire, 10…30 VDC
- Polarized version
- NO contact
- Cable connection
The Turck Inductive Sensor - Stainless Steel Front # BI12-EG30F-AG6X is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101351576 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | JP |
| Weight | 268 g |
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Rated switching distance | 12 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, 2-wire |
| Switching frequency | 0.050 kHz |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Stainless steel, 1.4305 (AISI 303) |
| Ambient temperature | -10…+70 °C |
| Protection class | IP67 |
| Special features | All-metal sensor, Pressure resistant |
