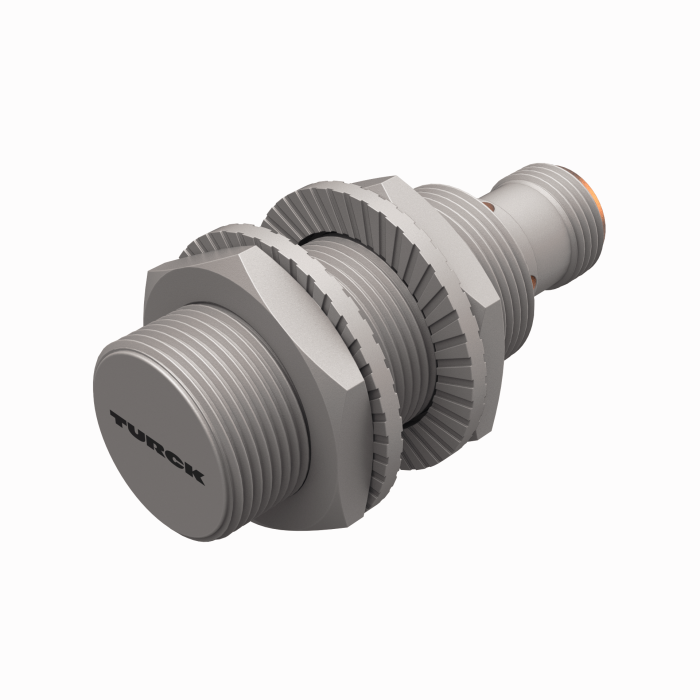

Inductive Sensor - IO-Link Communication and Configuration (BI10U-MT18-IOL6X2-H1141)
Turck

Inductive Sensor - IO-Link Communication and Configuration, M18 x 1, 10 mm Switching Distance, Flush, 10…30 VDC, PNP/NPN NO/NC, M12 Connector

SKU: BI10U-MT18-IOL6X2-H1141

$173.10

List price.

Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

M18 x 1 · 10 mm · Flush · Connector, M12 × 1

Inductive Sensor — IO-Link Communication and Configuration

  • Threaded barrel, M18 x 1
  • Brass, PTFE-coated
  • Factor 1 for all metals
  • Protection class IP68
  • Resistant to magnetic fields
  • Large switching distance
  • DC 4-wire, 10…30 VDC
  • M12 x 1 connector
  • Configuration and communication via IO-Link v1.1 or via standard I/O
  • Electrical outputs independently configurable
  • Switching distance can be parametrized per output and hysteresis
  • Identification via 32-byte memory
  • Temperature monitoring with adjustable limits
  • Various timer and pulse monitoring functions

The Turck Inductive Sensor - IO-Link Communication and Configuration, M18 x 1, 10 mm Switching Distance, Flush, 10…30 VDC, PNP/NPN NO/NC, M12 Connector BI10U-MT18-IOL6X2-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.

Have questions about this product?

Our team can help with product selection, specs, pricing, and application support.

Contact Us or Call (661) 327-8681
