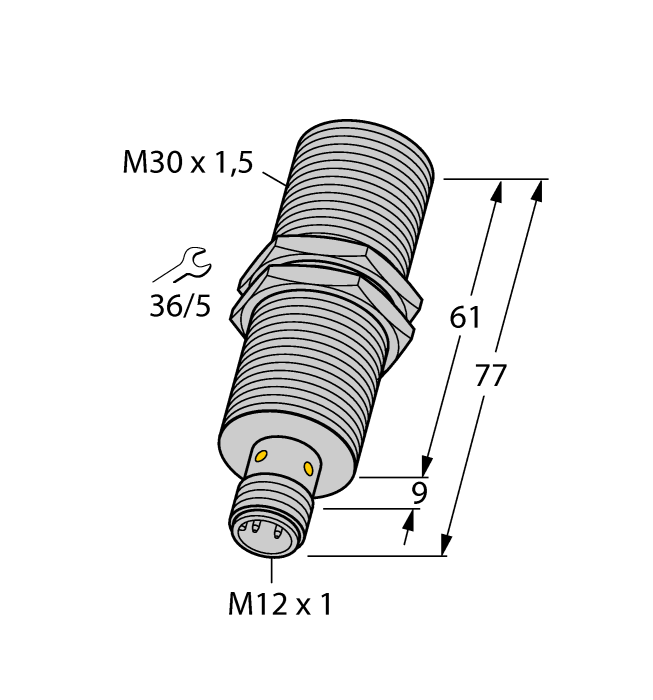

Inductive Sensor - With Analog Output
SKU: BI10-M30E-LIU-H1141
M30 x 1.5 · Flush · Connector, M12 × 1
$459.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor — With Analog Output
- M30 × 1.5 threaded barrel
- Chrome-plated brass
- 4‐wire, 15…30 VDC
- Analog output
- 0…10 V and 0…20 mA
- M12 x 1 male connector
The Turck Inductive Sensor - With Analog Output # BI10-M30E-LIU-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101072952 |
| eCl@ss-Code (V5.1.4) | 27270802 -/- Indcutive distance sensor |
| Customs tariff number | 7616995190 |
| Country of origin | DE |
| Weight | 141 g |
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Measuring range | 3…8 mm |
| Mounting | Flush |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Current output | 0…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
