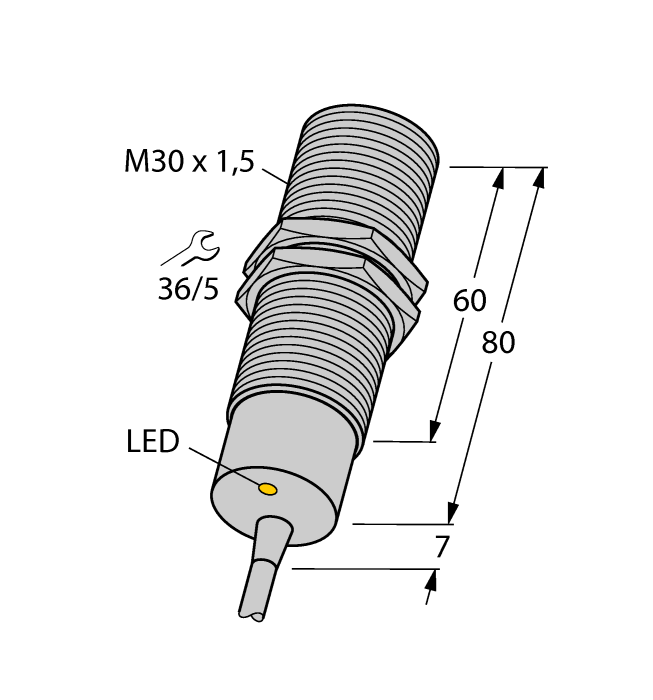

Inductive Sensor - With Increased Temperature Range
SKU: BI10-M30-AZ3X-0.3-SB3T/S120
M30 x 1.5 · 10 mm · Flush
$389.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor — With Increased Temperature Range
- M30 × 1.5 threaded barrel
- Chrome-plated brass
- S120 = Temperatures up to +120 °C
The Turck Inductive Sensor - With Increased Temperature Range # BI10-M30-AZ3X-0.3-SB3T/S120 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 208.35 g |
| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Rated switching distance | 10 mm |
| Mounting | Flush |
| Switching frequency | 0.020 kHz |
| Cable length (L) | 0.30 m |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -25…+120 °C |
| Protection class | IP67 |
