Inductive Sensor
SKU: BI1-EH08/6.5K-2AP6-225/250-FSF4.4K/S922
1 mm · Flush · Connector, M12 × 1
$740.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor

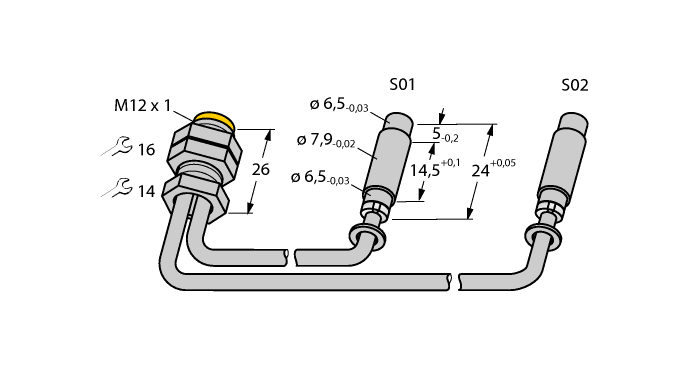

- FSF monitoring kit with two connected EH08/E6.5 sensors
- Connection via joint M12 x 1 male
- 2 x NO contact, PNP output
- DC 4-wire, 10…30 VDC
The Turck Inductive Sensor # BI1-EH08/6.5K-2AP6-225/250-FSF4.4K/S922 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101146783 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536504000 |
| Country of origin | DE |
| Weight | 35 g |
| Design | Monitoring kit for power clamps |
| Rated switching distance | 1 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Switching frequency | 0.030 kHz |
| Electrical connection | Connector, M12 × 1 |
| Cable length (L) | 0.2250 m |
| Housing material | Metal, 1.4301 (AISI 304) |
| Ambient temperature | -25…+100 °C |
| Protection class | IP67 |
