Inductive Sensor - With Analog Output
SKU: BI1.5-EG08-LU

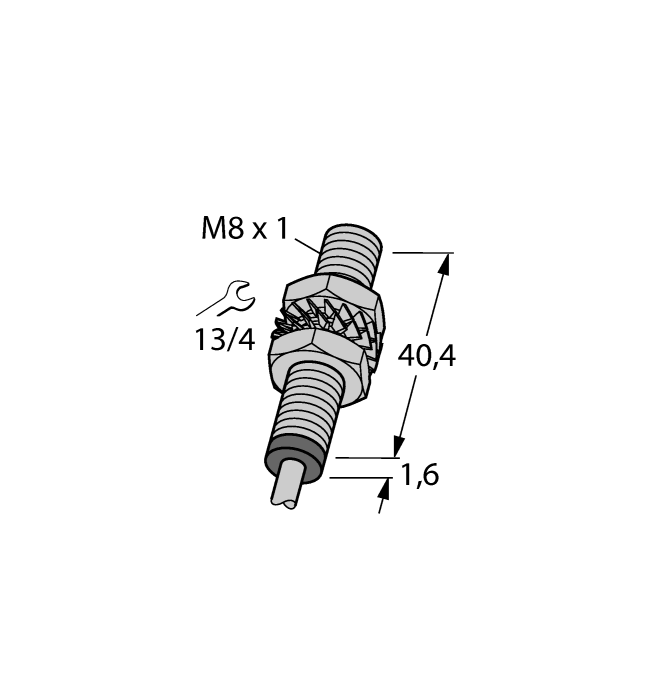

M8 x 1 · Flush · Cable
$260.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor — With Analog Output
- Threaded barrel, M8 x 1
- Stainless steel, 1.4427 SO
- 3‐wire, 15…30 VDC
- Analog output
- 0…10 V
- Cable connection
The Turck Inductive Sensor - With Analog Output # BI1.5-EG08-LU is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101145830 |
| eCl@ss-Code (V5.1.4) | 27270802 -/- Indcutive distance sensor |
| Customs tariff number | 8536507000 |
| Country of origin | PL |
| Weight | 59 g |
| Design | Threaded barrel |
| Construction size | M8 x 1 |
| Measuring range | 0.25…1.25 mm |
| Mounting | Flush |
| Operating voltage | 15…30 VDC |
| Output function | Analog output |
| Voltage output | 0…10 V |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Stainless steel, 1.4427 SO |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
