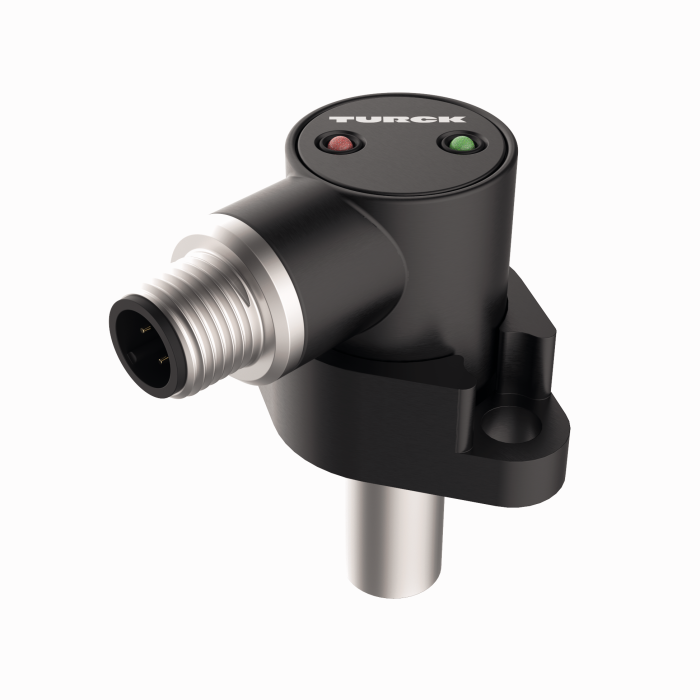

Inductive Sensor - For High Pressures
SKU: BI1.5-CRS730C-AP6X2-H1141
Ø 12.7 mm · 1.5 mm · Flush · Connector, M12 × 1
$460.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor — For High Pressures
- Smooth barrel, stainless steel, 1.4305
- Ø 12.7 mm
- Housing, GD-Zn, chromated
- Special high pressure seal and active ceramic surface
- Permissible dynamic pressure 206 bar; static overpressure 310 bar
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
The Turck Inductive Sensor - For High Pressures # BI1.5-CRS730C-AP6X2-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8536507000 |
| Country of origin | DE |
| Weight | 226.96 g |
| Design | Smooth barrel |
| Construction size | Ø 12.7 mm |
| Rated switching distance | 1.5 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Switching frequency | 0.030 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, 1.4305 (AISI 303) |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Special features | Pressure resistant |
