Inductive Sensor - With Increased Temperature Range
SKU: BI0.7-Q6.5-RP6/S1279
20.2 x 17.2 x 6.5 mm, Q6.5 · 0.7 mm · Flush · Cable
$175.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inductive Sensor — With Increased Temperature Range
- Rectangular, height 6.5 mm
- Active face, lateral
- Plastic, PP GR‐20
- Temperatures up to +85°C
- Resistant to magnetic fields
- DC 3-wire, 10…30 VDC
- NC contact, PNP output
- Cable connection
The Turck Inductive Sensor - With Increased Temperature Range # BI0.7-Q6.5-RP6/S1279 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101316605 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 18 g |
| Design | Rectangular |

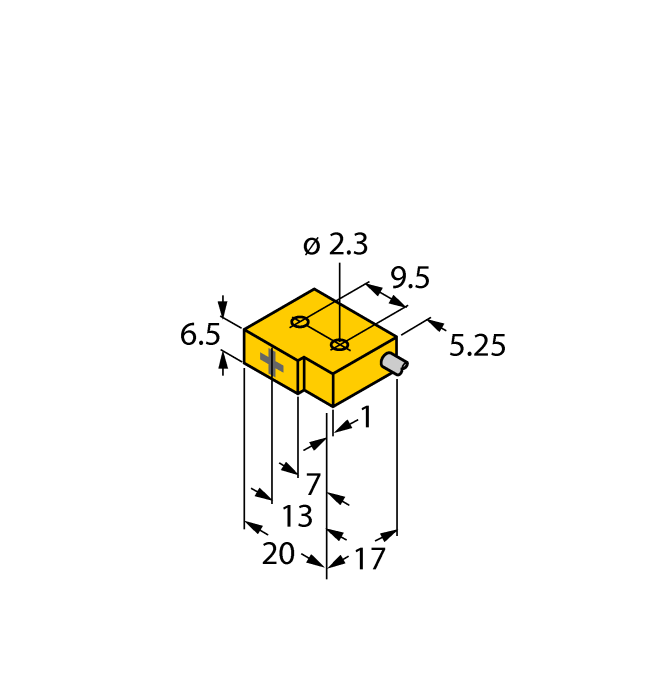

| Construction size | 20.2 x 17.2 x 6.5 mm, Q6.5 |
| Rated switching distance | 0.7 mm |
| Mounting | Flush |
| Operating voltage | 10…30 VDC |
| Output function | NC contact, PNP |
| Switching frequency | 2.0 kHz |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Plastic, PP GR-20 |
| Ambient temperature | -25…+85 °C |
| Protection class | IP67 |
