Capacitive Sensor - With Increased Temperature Range
SKU: BC5-S185-AP4X/S100
M18 x 1 · 7.5 mm · NO contact, PNP · Cable
$508.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

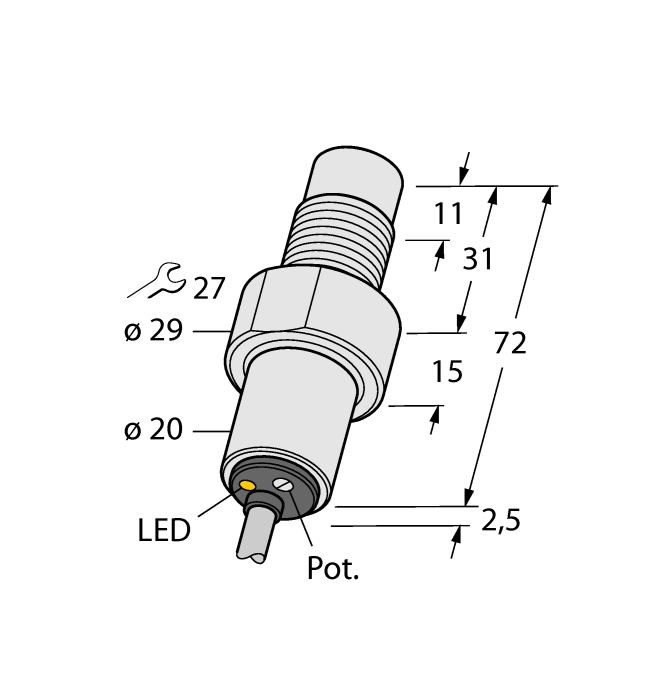

Capacitive Sensor — With Increased Temperature Range
- M18 × 1 threaded barrel
- Plastic, PVDF
- Fine adjustment via potentiometer
- For temperatures up to 100°C
- DC 3-wire, 10…65 VDC
- NO contact, PNP output
- Cable connection
The Turck Capacitive Sensor - With Increased Temperature Range BC5-S185-AP4X/S100 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101089189 |
| eCl@ss-Code (V5.1.4) | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 8517620010 |
| Country of origin | DE |
| Weight | 128 g |
| Design | Threaded barrel |
| Construction size | M18 x 1 |
| Rated switching distance | 7.5 mm |
| Output function | NO contact, PNP |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Plastic, PVDF |
| Ambient temperature | -25…+100 °C |
| Protection class | IP67 |
| Approvals | UL |
