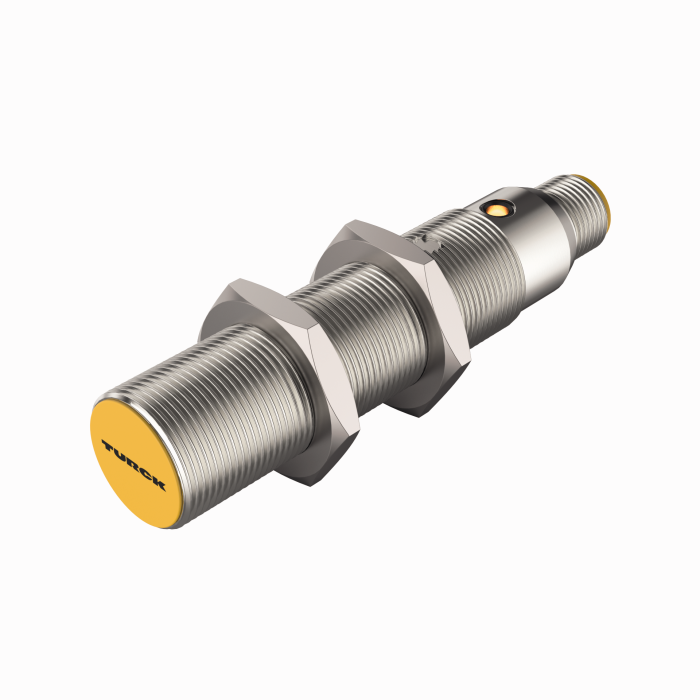

Capacitive Sensor
SKU: BC5-S18-AP4X-H1141/S250
M18 x 1 · 5 mm · NO contact, PNP · Connector, M12 × 1
$420.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Capacitive Sensor
- M18 × 1 threaded barrel
- Plastic, PA12‐GF30
- Fixed settings
- DC 3-wire, 10…65 VDC
- NO contact, PNP output
- M12 × 1 connector
The Turck Capacitive Sensor # BC5-S18-AP4X-H1141/S250 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101089257 |
| eCl@ss-Code (V5.1.4) | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 8517620010 |
| Country of origin | DE |
| Weight | 32 g |
| Design | Threaded barrel |
| Construction size | M18 x 1 |
| Rated switching distance | 5 mm |
| Output function | NO contact, PNP |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PA12-GF30, PEI |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
| Approvals | UL |
