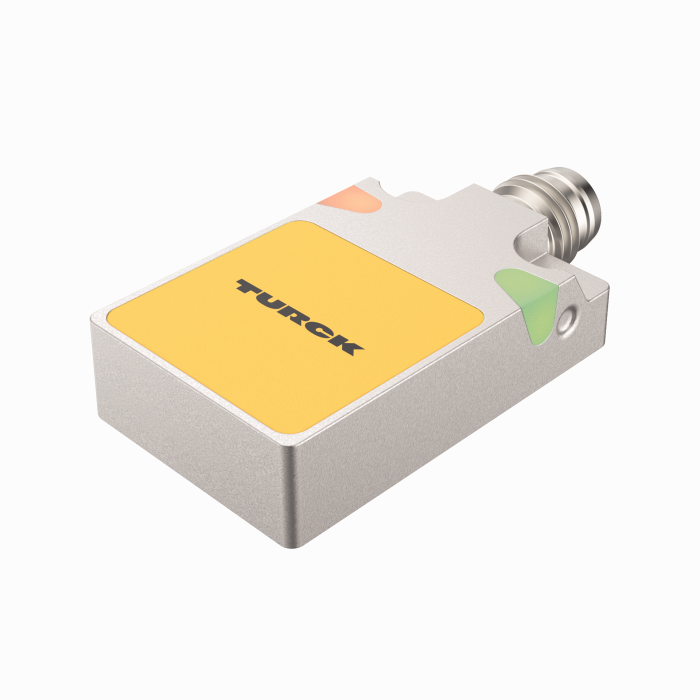

Capacitive Sensor
SKU: BC5-Q08-AN6X2-V1131/S250
32 x 20 x 8 mm, Q08 · 5 mm · NO contact, NPN · Connector, Ø 8 mm
$189.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Capacitive Sensor
- Rectangular, height 8 mm
- Active face on top
- Metal, Zamak, nickel plated
- Male connector with snap lock
- Fixed settings
- DC 3-wire, 10…30 VDC
- NO contact, NPN output
- Ø8-mm connector
The Turck Capacitive Sensor # BC5-Q08-AN6X2-V1131/S250 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101149807 |
| eCl@ss-Code (V5.1.4) | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 8536504000 |
| Country of origin | CH |
| Weight | 19 g |
| Design | Rectangular |
| Construction size | 32 x 20 x 8 mm, Q08 |
| Rated switching distance | 5 mm |
| Output function | NO contact, NPN |
| Electrical connection | Connector, Ø 8 mm |
| Housing material | Metal, Zamak, Nickel Plated |
| Ambient temperature | -25…+70 °C |
| Protection class | IP68 |
| Approvals | UL |
