M8 x 1 · 2 mm · NO/NC (NO pre-set), NPN · Connector, M8 × 1
Capacitive Sensor
- M8 × 1 threaded barrel
- Stainless steel housing, probe made of PBT
- Fine adjustment via potentiometer
- DC 3-wire, 18…30 VDC
- Adjustable NC/NO contact
- Factory-set NO contact
- 3-pin connector device, M8 × 1

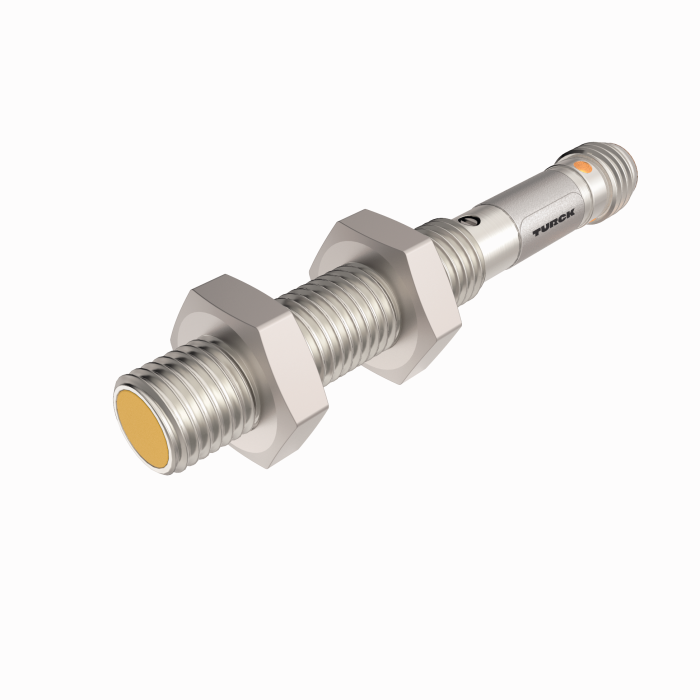

The Turck Capacitive Sensor, M8 x 1, 2 mm Switching Distance, 18…30 VDC, NPN NO/NC (NO Pre-Set), M8 Connector BC2-EM08-UN8X-V1131 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101529104 |
| eCl@ss-Code (V5.1.4) | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 9026204000 |
| Country of origin | DE |
| Weight | 17 g |
| Function | Level detection |
| Design | Threaded barrel |
| Construction size | M8 x 1 |
| Rated switching distance | 2 mm |
| Operating voltage | 18…30 VDC |
| Output function | NO/NC (NO pre-set), NPN |
| Electrical connection | Connector, M8 × 1 |
| Housing material | Stainless steel |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
