Inclinometer - With Increased Temperature Range
SKU: B2N60H-Q20L60-2LU3/S97
-60…60° · 60 x 30 x 20 mm · Plastic, PC · -40…+70 °C
$568.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inclinometer — With Increased Temperature Range
- Plastic, PC
- Zero point calibration +/‐ 15°
- Two analog outputs
- Cable connection
The Turck Inclinometer - With Increased Temperature Range # B2N60H-Q20L60-2LU3/S97 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101230758 |
| eCl@ss-Code (V5.1.4) | 27279090 -/- Sensor technology (not classified) |
| Customs tariff number | 8536698000 |
| Country of origin | DE |
| Weight | 126 g |
| Measuring principle | Acceleration |
| Measuring range | -60…60° |
| Number of measuring axes | 2 |

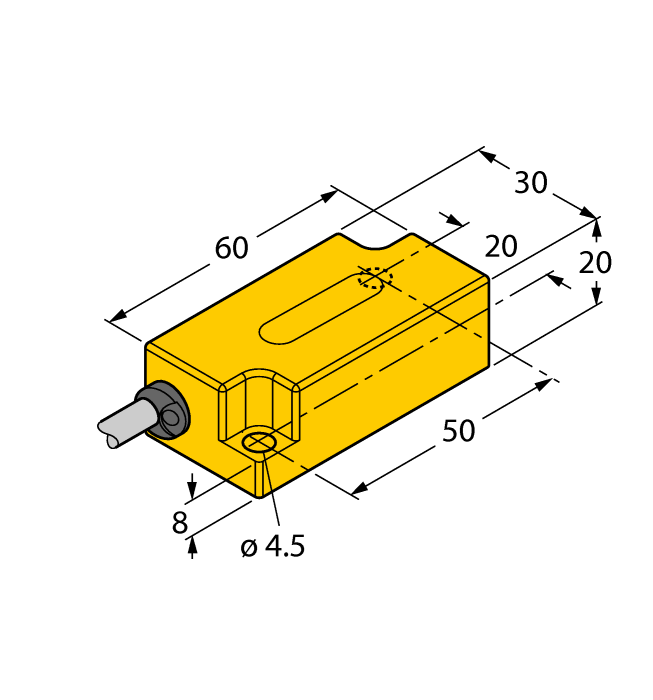

| Construction size | 60 x 30 x 20 mm |
| Operating voltage | 10…30 VDC |
| Output function | Analog output |
| Voltage output | 0.1…4.9 V |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Plastic, PC |
| Ambient temperature | -40…+70 °C |
| Protection class | IP68/IP69K |
