Inclinometer - With CANopen Interface
SKU: B2N45H-Q42-CNX2-2H1150
-45…45° · 67.7 x 42.5 x 42.5 mm · Plastic, PA12-GF30 · -40…+80 °C
$525.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inclinometer — With CANopen Interface
- Rectangular, height 42 mm
- Plastic, PA12-GF30
- Convenient CANopen interface
- Fulfills CiA DS‐301, CiA DSP‐410
- High resolution and accuracy
- Baud rates of 10 kbps up to 1 Mbps
- High sampling rate and bandwidth
- Parameterizable vibration suppression
- One TPDO (RTR, cyclic, event-controlled, synchronized)
- Configuration via SDO and object directory
- SYNC load (synchronized transmission of TPDO after reception of SYNC telegram)
- EMCY producer (inclination, internal device temperature monitoring)
- Failure monitoring via heartbeat or nodeguarding/lifeguarding
- Freely configurable limit frequency (digital filter)
- Robust and compact plastic housing
The Turck Inclinometer - With CANopen Interface # B2N45H-Q42-CNX2-2H1150 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101232080 |
| eCl@ss-Code (V5.1.4) | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 9031808085 |
| Country of origin | DE |
| Weight | 139 g |
| Measuring principle | Acceleration |
| Measuring range | -45…45° |
| Number of measuring axes | 2 |

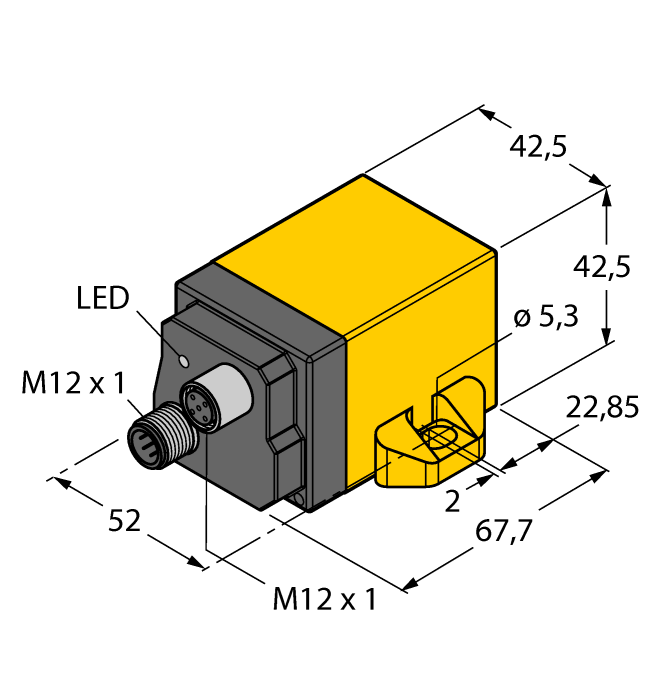

| Construction size | 67.7 x 42.5 x 42.5 mm |
| Operating voltage | 10…30 VDC |
| Communication protocol | CANopen |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PA12-GF30 |
| Ambient temperature | -40…+80 °C |
| Protection class | IP68/IP69K |
