Inclinometer
SKU: B2N10H-Q20L60-2LU3-H1151
-10…10° · 60 x 30 x 20 mm · Plastic, PC · -30…+70 °C
$450.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inclinometer
- Plastic, PC
- Zero point calibration +/‐ 5°
- Two analog outputs
- M12 x 1 male connector
The Turck Inclinometer # B2N10H-Q20L60-2LU3-H1151 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101200065 |
| eCl@ss-Code (V5.1.4) | 27279090 -/- Sensor technology (not classified) |
| Customs tariff number | 9031909195 |
| Country of origin | DE |
| Weight | 62 g |
| Measuring principle | Acceleration |
| Measuring range | -10…10° |
| Number of measuring axes | 2 |

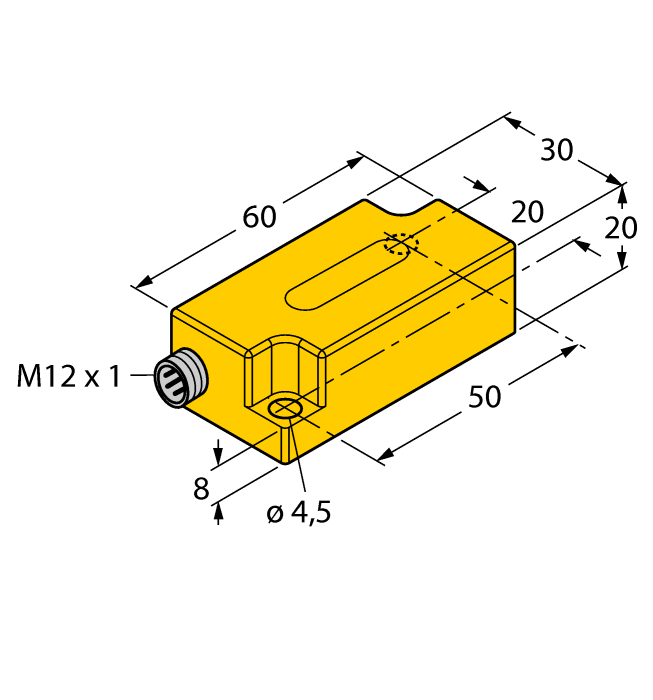

| Construction size | 60 x 30 x 20 mm |
| Operating voltage | 10…30 VDC |
| Output function | Analog output |
| Voltage output | 0.1…4.9 V |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PC |
| Ambient temperature | -30…+70 °C |
| Protection class | IP68/IP69K |
