- with increased damping
SKU: B1N360V-Q20L60-2LU3/S1217
0…360° · 60 x 30 x 20 mm · Plastic, PC · -30…+70 °C
$450.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
with increased damping
- Plastic, PBT‐GF30‐V0
- Response time 1 s
- Cutoff frequency 6 Hz
- Measuring range adjustable via teach adapter TX1-Q20L60
- 10…30 VDC
- Two counter-running 0.1 … 4.9 V analog outputs improve machine safety through redundancy
The Turck - with increased damping # B1N360V-Q20L60-2LU3/S1217 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101287547 |
| eCl@ss-Code (V5.1.4) | 27279090 -/- Sensor technology (not classified) |
| Customs tariff number | 3926909989 |
| Country of origin | DE |
| Weight | 125 g |
| Measuring principle | Acceleration |
| Measuring range | 0…360° |
| Number of measuring axes | 1 |

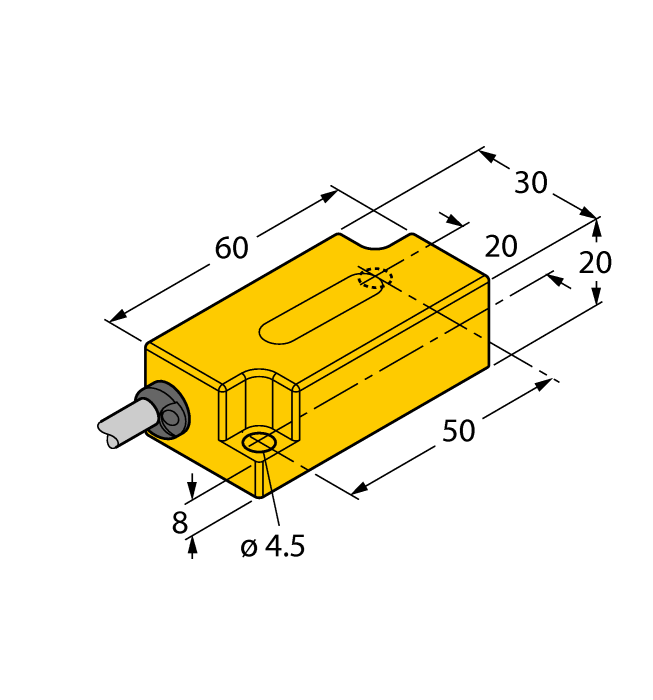

| Construction size | 60 x 30 x 20 mm |
| Operating voltage | 10…30 VDC |
| Output function | Analog output |
| Voltage output | 0.1…4.9 V |
| Electrical connection | Cable |
| Cable length (L) | 2.0 m |
| Housing material | Plastic, PC |
| Ambient temperature | -30…+70 °C |
| Protection class | IP68/IP69K |
