Inclinometer - with increased damping
SKU: B1N360V-Q20L60-2LI2-H1151/S1217
0…360° · 60 x 30 x 20 mm · Plastic, PC · -30…+70 °C
$450.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Inclinometer — with increased damping
- Rectangular, plastic, PC
- Compact housing
- Connection via M12 × 1 male
- Response time 1 s
- Cutoff frequency 6 Hz
- Measuring range adjustable via teach adapter TX1-Q20L60
- 10…30 VDC
- Two counter-running 4 … 20mA analog outputs improve machine safety through redundancy
The Turck Inclinometer - with increased damping # B1N360V-Q20L60-2LI2-H1151/S1217 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101277319 |
| eCl@ss-Code (V5.1.4) | 27279090 -/- Sensor technology (not classified) |
| Customs tariff number | 8536698000 |
| Country of origin | DE |
| Weight | 62 g |
| Measuring principle | Acceleration |
| Measuring range | 0…360° |
| Number of measuring axes | 1 |

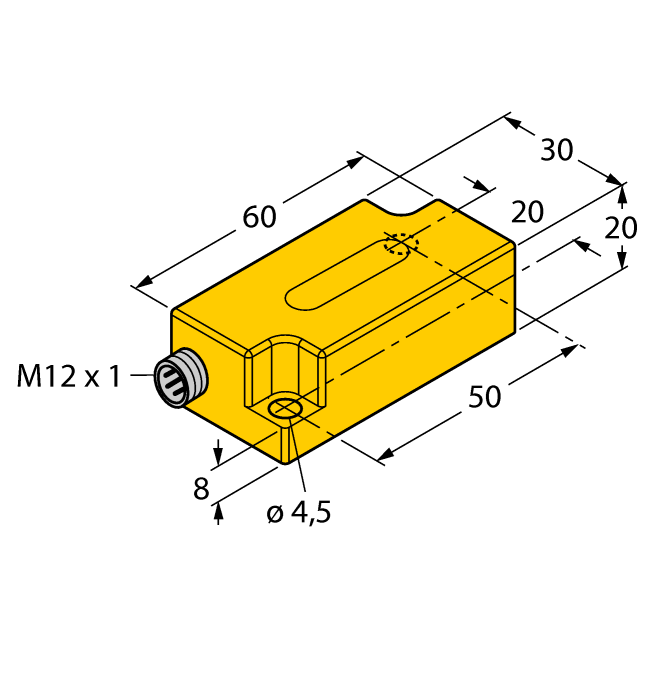

| Construction size | 60 x 30 x 20 mm |
| Operating voltage | 10…30 VDC |
| Output function | Analog output |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PC |
| Ambient temperature | -30…+70 °C |
| Protection class | IP68/IP69K |
