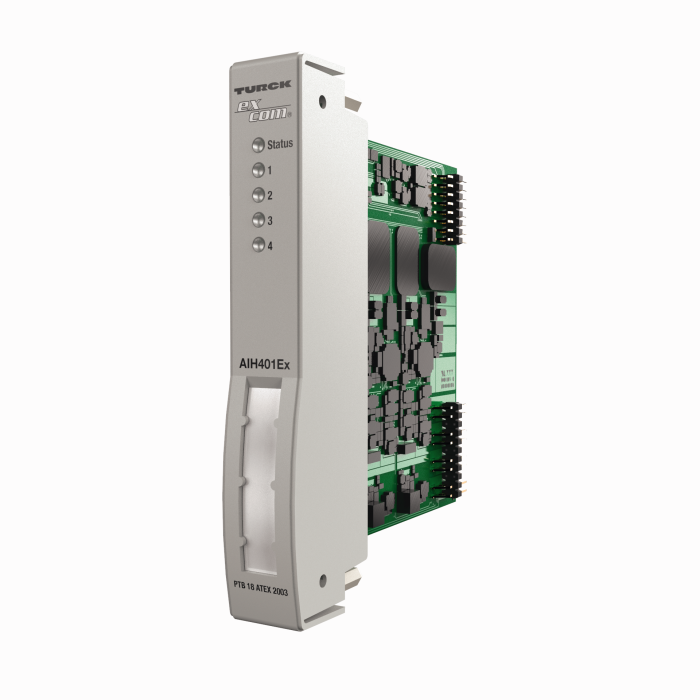

excom I/O System - Input Module, Analog, HART, 4-channel
SKU: AIH401EX
I/O Module · Analog input, HART, Intrinsically safe · Screw terminal, Cage clamp terminal · ATEX, cFMus, cFM, IECEx, CCC, INMETRO, KOSHA, EAC Ex, CMI, UKCA, CE
$1,111.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
excom I/O System — Input Module, Analog, HART, 4-channel
- Input module for the connection of passive transmitters (active inputs) or active transmitters (passive inputs).
- Transmission of HART data
- One HART controller per channel for faster access to HART data
- Complete galvanic isolation
The Turck excom I/O System - Input Module, Analog, HART, 4-channel # AIH401EX is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101416794 |
| eCl@ss-Code (V5.1.4) | 27250303 -/- Analog I/O module |
| Customs tariff number | 8536504000 |
| Country of origin | CN |
| Weight | 131 g |
| Fieldbus Protocol | PROFIBUS-DP, EtherNet/IP, Modbus TCP, PROFINET |
| Signal type | Analog input, HART, Intrinsically safe |
| Connection technology signal | Screw terminal, Cage clamp terminal |
| Device type | I/O Module |
| Ambient temperature | -20…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, cFMus, cFM, IECEx, CCC, INMETRO, KOSHA, EAC Ex, CMI, UKCA, CE |
