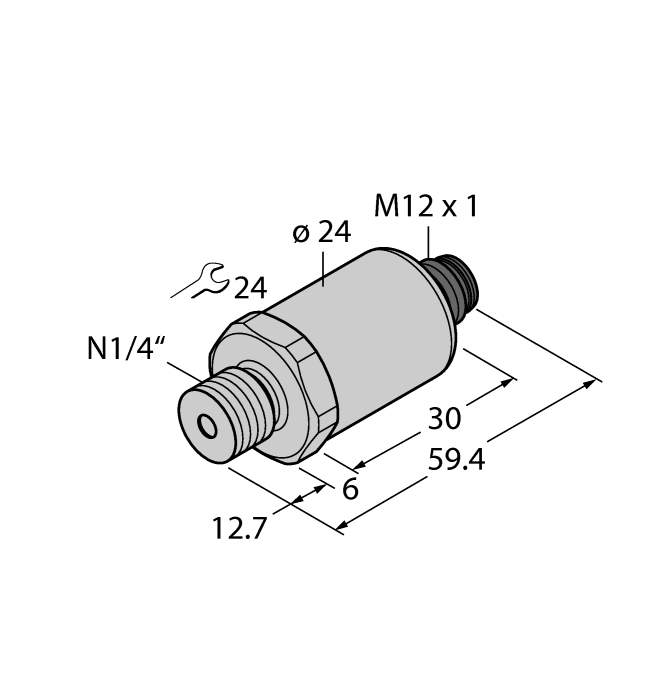

Pressure Transmitter - Ratiometric Output (3-Wire)
SKU: PT3000PSIG-2003-U6-H1143
0…3000 psi · 1/4″ NPT-18 male thread · Voltage output (3-wire) · 4.5…5.5 VDC
$201.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Pressure Transmitter — Ratiometric Output (3-Wire)
- Fully welded metal measuring cell
- Pressure range 0…3000 psi rel.
- 5 VDC ± 10 %
- Ratiometric output 10…90 %
- Process connection 1/4"-18 NPT male thread
- Plug-in device, M12 × 1
The Turck Pressure Transmitter - Ratiometric Output (3-Wire) # PT3000PSIG-2003-U6-H1143 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101703542 |
| eCl@ss-Code (V5.1.4) | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Customs tariff number | 90268020000 |
| Country of origin | CH |
| Weight | 95 g |
| Design | Without display |
| Process connection | 1/4″ NPT-18 male thread |
| Pressure type | Relative pressure |
| Pressure range bar | 0…206.84 bar |
| Pressure range psi | 0…3000 psi |
| Operating voltage | 4.5…5.5 VDC |
| Electrical output | Voltage output (3-wire) |
| Voltage output | 0.5…4.5 V |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Material pressure transducer | Stainless steel 1.4435 (AISI 316L) |
| Medium temperature | -40…+135 °C |
| Ambient temperature | -30…+85 °C |
| Protection class | IP67 |
| Approvals | CE, Metrological certification (RUS), cULus |
