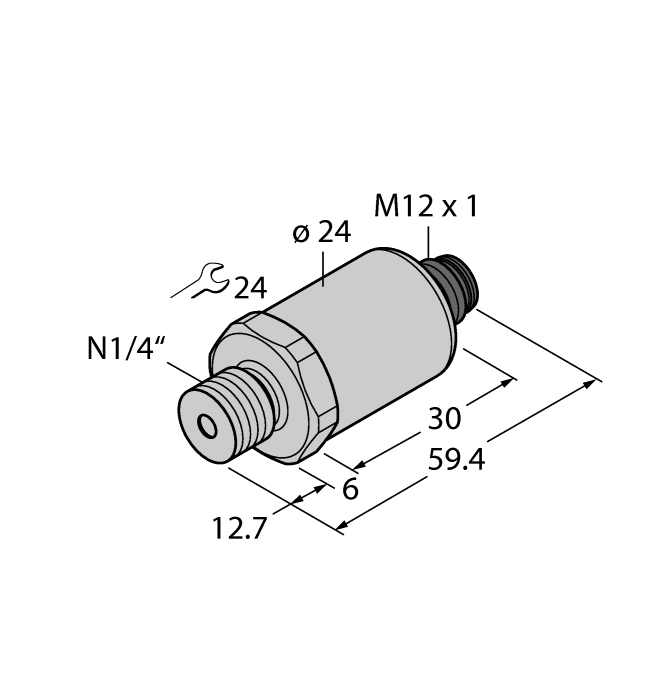

Pressure Transmitter - With Current Output (2-Wire)
SKU: PT3000PSIG-2003-I2-H1143
0…3000 psi · 1/4″ NPT-18 male thread · Current output (2-wire) · 7…33 VDC
$194.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Pressure Transmitter — With Current Output (2-Wire)
- Fully welded metal measuring cell
- Pressure range 0…3000 psi rel.
- 7…33 VDC
- Analog output 4…20 mA
- Process connection 1/4"-18 NPT male thread
- Plug-in device, M12 × 1
The Turck Pressure Transmitter - With Current Output (2-Wire) # PT3000PSIG-2003-I2-H1143 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101421606 |
| eCl@ss-Code (V5.1.4) | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Customs tariff number | 9026204000 |
| Country of origin | CH |
| Weight | 104 g |
| Design | Without display |
| Process connection | 1/4″ NPT-18 male thread |
| Pressure type | Relative pressure |
| Pressure range bar | 0…206.84 bar |
| Pressure range psi | 0…3000 psi |
| Operating voltage | 7…33 VDC |
| Electrical output | Current output (2-wire) |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Material pressure transducer | Stainless steel 1.4435 (AISI 316L) |
| Medium temperature | -40…+135 °C |
| Ambient temperature | -30…+85 °C |
| Protection class | IP67 |
| Approvals | CE, Metrological certification (RUS), cULus |
This product is part of a family with 233 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
PT9V-2001-I2-H1141 | $194.70 | View Details → |
PT9V-2003-IOL-H1141 | $243.40 | View Details → |
PT15V-2003-IOL-H1141 | $251.80 | View Details → |
PT24V-2003-IOL-H1141 | $243.40 | View Details → |
PT10000PG-4300-16-LI3-CO244/D811 10FT | $694.00 | View Details → |
PT3500PG-4000-14-LU4-CA244/D814 2FT | $386.50 | View Details → |
PT15PSIV-2003-I2-H1143 | $194.70 | View Details → |
PT15PSIV-2003-I2-H1144 | $201.50 | View Details → |
PT15PSIV-2003-U1-H1141 | $201.50 | View Details → |
PT1R-1003-I2-H1143 | $201.50 | View Details → |
