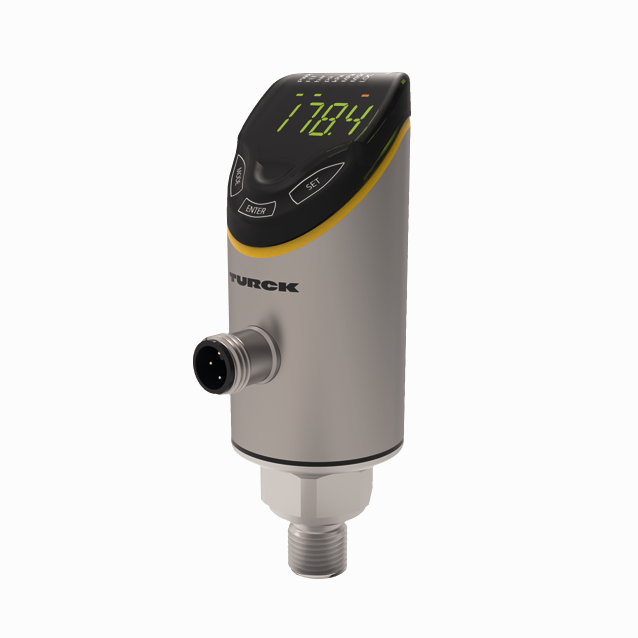

Pressure Sensor - Relative Pressure: 0…250 Bar
SKU: PS510-250-05-2UPN8-H1141
0…3600 psi · 7/16″-20 UNF male thread · 2 × switching output, IO-Link · 18…33 VDC
$485.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Pressure Sensor — Relative Pressure: 0…250 Bar
- 4-digit, 2-color (red/green), 12-segment display, rotatable by 180°
- Housing is rotatable after mounting the process connection
- Metal measuring cell
- Pressure range 0…250 bar relative
- 18…33 VDC
- NO/NC contact, PNP/NPN output, IO-Link SSP4.1.1
- Process connection 7/16″ UNF (SAE) male thread
- Connector device, M12 × 1
The Turck Pressure Sensor - Relative Pressure: 0…250 Bar # PS510-250-05-2UPN8-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101713640 |
| eCl@ss-Code (V5.1.4) | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Customs tariff number | 8517620010 |
| Country of origin | DE |
| Weight | 270 g |
| Design | With display |
| Process connection | 7/16″-20 UNF male thread |
| Pressure type | Relative pressure |
| Pressure range bar | 0…250 bar |
| Pressure range psi | 0…3600 psi |
| Operating voltage | 18…33 VDC |
| Electrical output | 2 × switching output, IO-Link |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5 |
| Materials (contact with media) | Stainless steel 1.4404 (AISI 316L)/1.4542 (AISI 630) |
| Medium temperature | -40…+80 °C |
| Ambient temperature | -40…+80 °C |
| Protection class | IP66/IP67/IP69K |
| Approvals | CE, Metrological certification (RUS), cULus |
This product is part of a family with 148 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
PS510-25V-05-2UPN8-H1141 | $469.50 | View Details → |
PS510-16V-03-LI2UPN8-H1141/S1802 | $854.70 | View Details → |
PS510-16V-03-LI2UPN8-H1141/S1704 | $2,107.70 | View Details → |
PS510-10V-03-LI2UPN8-H1141/S1049 | $3,022.60 | View Details → |
PS510-10A-01-LI2UPN8-H1141 | $469.50 | View Details → |
PS510-10V-04-2UPN8-H1141 | $469.50 | View Details → |
PS510-10V-04-LI2UPN8-H1141 | $469.50 | View Details → |
PS510-10V-05-LI2UPN8-H1141 | $469.50 | View Details → |
PS510-10A-02-LI2UPN8-H1141 | $485.80 | View Details → |
PS510-10A-03-LI2UPN8-H1141 | $485.80 | View Details → |
