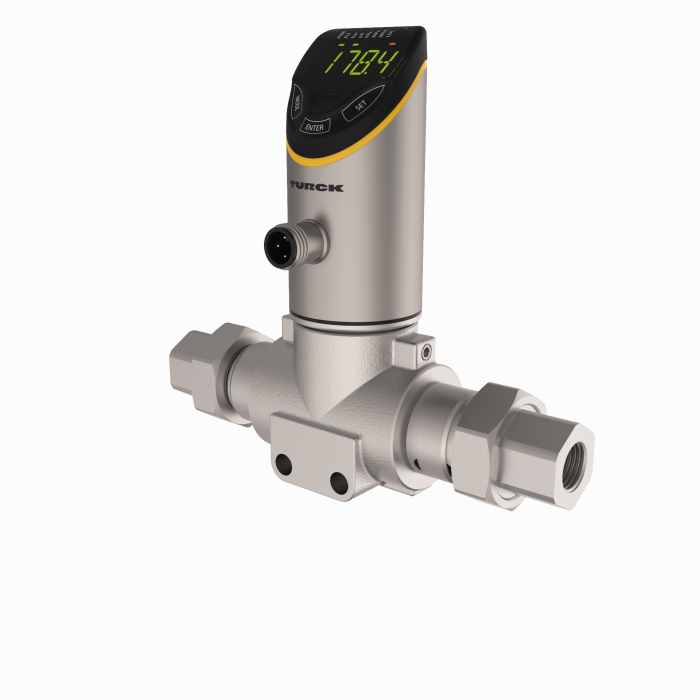

Pressure Sensor - Differential Pressure: 0…16 bar
SKU: PS325-016D-01-LI2UPN8-H1141
0…230 psi · G 1/4'' female thread · Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link · 18…33 VDC
$885.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Pressure Sensor — Differential Pressure: 0…16 bar
- 4-digit, 2-color (red/green), 12-segment display, rotatable by 180°
- Housing is rotatable after mounting the process connection
- Pressure range 0…16 bar diff.
- 18…33 V DC
- NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link
- T-type
- Process connection G1/4 inch female thread
- Connector device, M12 × 1
The Turck Pressure Sensor - Differential Pressure: 0…16 bar # PS325-016D-01-LI2UPN8-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101535198 |
| eCl@ss-Code (V5.1.4) | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Customs tariff number | 9026204000 |
| Country of origin | DE |
| Weight | 1082 g |
| Design | With display (integrated probe) |
| Process connection | G 1/4'' female thread |
| Pressure type | Differential Pressure |
| Pressure range bar | 0…16 bar |
| Pressure range psi | 0…230 psi |
| Operating voltage | 18…33 VDC |
| Electrical output | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link |
| Voltage output | 0…10 V |
| Current output | 4…20 mA |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5 |
| Materials (contact with media) | Stainless steel 1.4404 (AISI 316L), Al₂O₃, FKM |
| Medium temperature | -30…+80 °C |
| Ambient temperature | -40…+80 °C |
| Protection class | IP66/IP67/IP69K |
| Approvals | CE, Metrological certification (RUS), cULus |
This product is part of a family with 13 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
PS325-001D-01-LI2UPN8-H1141 | $885.50 | View Details → |
PS325-001D-02-LI2UPN8-H1141 | $885.50 | View Details → |
PS325-001D-02-2UPN8-H1141 | $916.30 | View Details → |
PS325-003D-02-2UPN8-H1141 | $885.50 | View Details → |
PS325-010D-01-LI2UPN8-H1141 | $885.50 | View Details → |
PS325-010D-02-2UPN8-H1141 | $885.50 | View Details → |
PS325-010D-02-LI2UPN8-H1141 | $885.50 | View Details → |
PS325-016D-01-LI2UPN8-H1141Current | $885.50 | Viewing |
PS325-025D-02-LI2UPN8-H1141 | $916.30 | View Details → |
PS325-040D-02-LI2UPN8-H1141 | $885.50 | View Details → |
