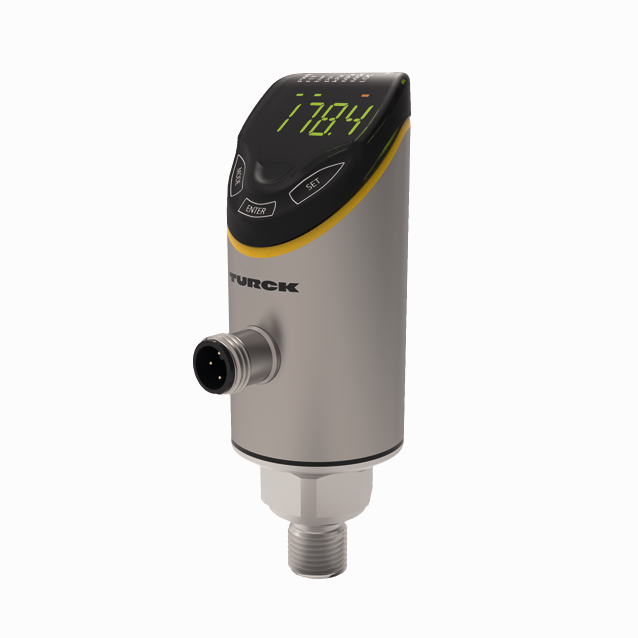

Pressure Sensor - Relative Pressure: -1…0 Bar
SKU: PS310-0V-08-2UPN8-H1141
-14…0 psi · G 1/2” male thread DIN 3852-E (manometer) · 2 × switching output, IO-Link · 18…33 VDC
$485.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Pressure Sensor — Relative Pressure: -1…0 Bar
- 4-digit, 2-color (red/green), 12-segment display, rotatable by 180°
- Housing is rotatable after mounting the process connection
- Ceramic measuring cell
- 18…33 VDC
- NO/NC contact, PNP/NPN output, IO-Link
- Process connection G1/2" male thread (manometer)
- Plug-in device, M12 × 1
The Turck Pressure Sensor - Relative Pressure: -1…0 Bar # PS310-0V-08-2UPN8-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101555141 |
| eCl@ss-Code (V5.1.4) | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Customs tariff number | 90262020000 |
| Country of origin | DE |
| Weight | 275 g |
| Design | With display |
| Process connection | G 1/2” male thread DIN 3852-E (manometer) |
| Pressure type | Relative pressure |
| Pressure range bar | -1…0 bar |
| Pressure range psi | -14…0 psi |
| Operating voltage | 18…33 VDC |
| Electrical output | 2 × switching output, IO-Link |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5 |
| Materials (contact with media) | Stainless steel 1.4404 (AISI 316L), Al₂O₃, FKM |
| Medium temperature | -30…+80 °C |
| Ambient temperature | -40…+80 °C |
| Protection class | IP66/IP67/IP69K |
| Approvals | CE, Metrological certification (RUS), cULus |
This product is part of a family with 61 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
PS310-0V-01-LI2UPN8-H1141 | $469.50 | View Details → |
PS310-0V-01-2UPN8-H1141 | $485.80 | View Details → |
PS310-0V-02-2UPN8-H1141 | $485.80 | View Details → |
PS310-0V-02-LI2UPN8-H1141 | $485.80 | View Details → |
PS310-0V-03-LI2UPN8-H1141 | $485.80 | View Details → |
PS310-0V-04-2UPN8-H1141 | $485.80 | View Details → |
PS310-0V-04-LI2UPN8-H1141 | $485.80 | View Details → |
PS310-0V-05-2UPN8-H1141 | $485.80 | View Details → |
PS310-0V-05-LI2UPN8-H1141 | $485.80 | View Details → |
PS310-0V-08-2UPN8-H1141Current | $485.80 | Viewing |
