Liquid to Liquid Separator, 50 MPa (7000 PSI), Skydrol Use
SKU: P5522-50M

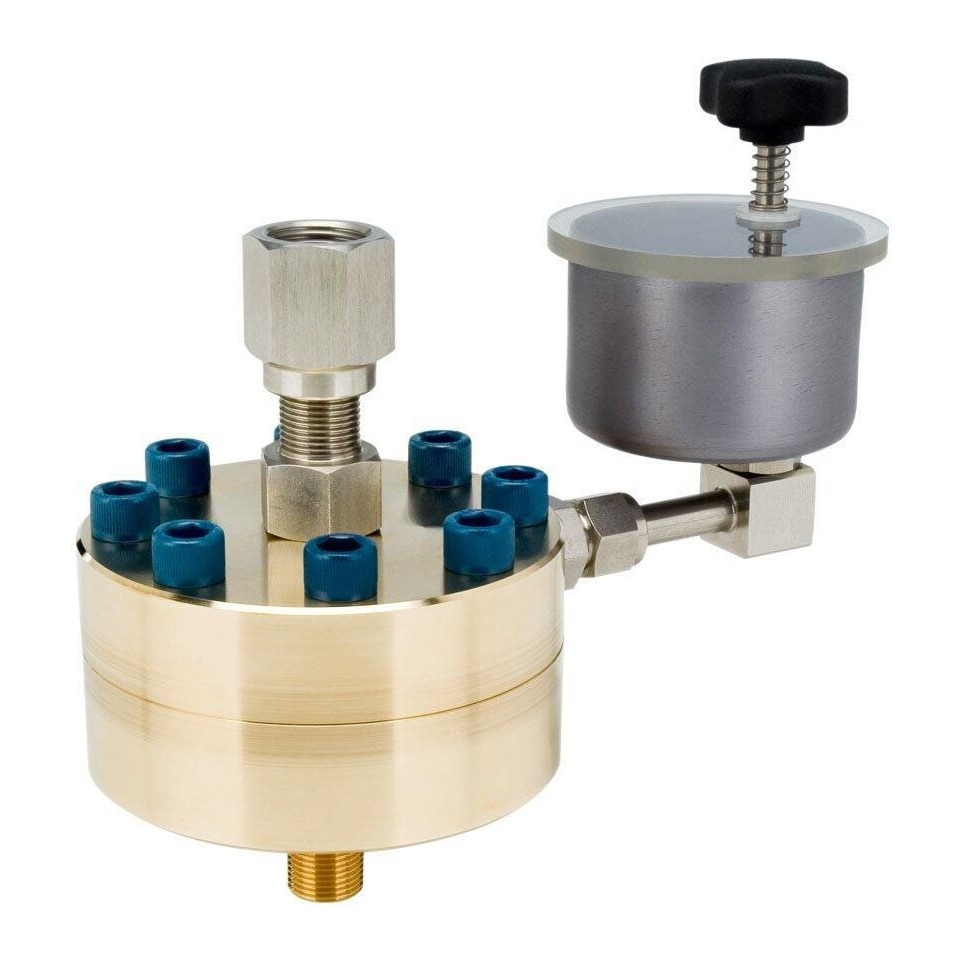

Liquid to Liquid Separator, 50 MPa (7000 PSI), Skydrol Use
Contact us for pricing on this product.
These liquid-to-liquid separators connect directly to the test port of a hydraulic deadweight tester or comparison test pump. A flexible diaphragm separates the fluids, protecting the calibrator from contamination, and allows calibration of the device in its specific working fluid.
Key Features
- P5521-For pressures to 10,000 psi (700 bar)
- P5522-For pressures to 7,000 psi (480 bar) for Skydrol or other aggressive fluids
The Fluke Calibration Liquid to Liquid Separator, 50 MPa (7000 PSI), Skydrol Use # P5522-50M is manufactured by Fluke Calibration. Valley Instrument Service is an authorized Fluke Calibration dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Pressure Range | 5521: 0 to 10,000 psi (700 bar); 5522: 0 to 7,000 psi (480 bar) for Skydrol and other aggressive fluids |
| Instrument Size (W x H) | 4 x 6 in (100 x 150 mm) |
| Instrument Weight | 7.5 lb (3.5 kg) |
| Test Port Adapter | Uses adapters supplied with calibrator |
| Calibrator Connection | 3/8 BSP male (mating adapter supplied) |
| Body Material | Aluminum bronze |
| Diaphragm | 5521- Viton® 5522-Ethylene Propylene |
| Reservoir Material | Hard-anodized aluminum |
