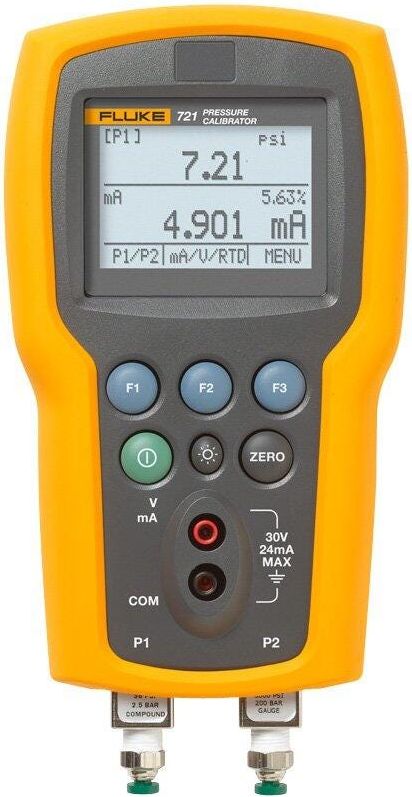

721-1601 Dual Sensor Pressure Calibrator, 16 PSIG, 100 PSIG
SKU: FLUKE-721-1601
The Fluke 721 Pressure Calibrator has dual isolated sensors for gas custody transfer applications. 0.025% accuracy. Does temp measurement. See all specs.
List price. Volume pricing available.
The Fluke 721 Pressure Calibrator has dual isolated sensors for gas custody transfer applications. 0.025% accuracy. Does temp measurement. See all specs.
Key Features
- Precision pressure calibrator with dual isolated sensors for gas flow calibration (custody transfer) applications
- Features two isolated, stainless steel, pressure sensors with 0.025% accuracy
- Includes Pt100 RTD input for temperature measurement (probe optional)
- Measures 4 to 20 mA signals
- Provides internal 24 V loop power supply to power a transmitter under test
The Fluke 721-1601 Dual Sensor Pressure Calibrator, 16 PSIG, 100 PSIG # FLUKE-721-1601 is manufactured by Fluke. Valley Instrument Service is an authorized Fluke dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | Specifications 1-Year |
| Range | Resolution |
| -14 psi to +16 psi,-0.97 bar to 1.1 bar | 0.001 psi,0.0001 bar |
| 0 psi to +1500 psi,0.00 bar to 103.4 bar | 0.1 psi,0.001 bar |
| 0 psi to +3000 psi,0.00 bar to 200 bar | 0.1 psi,0.01 bar |
| 0 psi to +5000 psi,0.00 bar to 345 bar | 0.1 psi,0.01 bar |
| -14 psi to +36 psi,-0.97 bar to 2.48 bar | 0.001 psi,0.0001 bar |
| High pressure sensor | General Specifications |
| Instrument setup recall | Last used on power-up |
| Environmental | Operating temperature -10°C to +50°CStorage temperature (without batteries) -20°C to +60°C |
| Altitude | 2,000 m |
| Ingress protection | IP-40 |
| Power requirements | 6.0 V DC |
| Battery life | >35 hours, typical usage |
| Batteries required | (4) Standard AA cells |
| Dimensions (H x W x D) | 7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm) |
| Weight | 03539 kg (1 lb 3 oz) |
| Connectors/ports pressure | Two, 1/8 in NPT, 700P Series Pressure Module; RTD Probe |
| Function | Range |
| mA measure | 0 to 24 mA |
| V DC measure | 0 to 30 V DC |
| Temperature measure (RTD/ Ohms)1 | -40°C to 150°C(-40°F to 302°F) |
| Loop power supply | 24 V |
This product is part of a family with 14 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
FLUKE-721-1650 | $3,700.99 | View Details → |
FLUKE-721-1630 | $3,700.99 | View Details → |
FLUKE-721-1615 | $3,700.99 | View Details → |
FLUKE-721-1610 | $3,700.99 | View Details → |
FLUKE-721-1605 | $3,700.99 | View Details → |
FLUKE-721-1603 | $3,700.99 | View Details → |
FLUKE-721-1601Current | $3,700.99 | Viewing |
FLUKE-721-3650 | $3,700.99 | View Details → |
FLUKE-721-3630 | $3,700.99 | View Details → |
FLUKE-721-3615 | $3,700.99 | View Details → |
