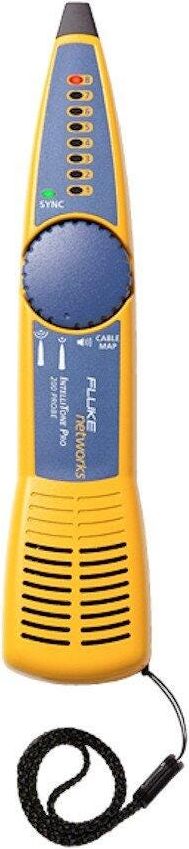

Fluke Networks MT-8200-63A probe detects IntelliTone digital signals on active networks and 500 to 1,200 Hz analog signals on inactive networks to locate, trace, and isolate copper cabling.
Key Features
- Detects IntelliTone digital signals on active networks
- Includes: IntelliTone Pro 200 probe, RJ11 and RJ 45 patch cables, 9-V battery
- Identifies signals audibly and with 8 LEDs
- LED shows battery strength at power up and confirms signals
- Turns off automatically after 1 hour of inactivity
The Fluke Networks Micromapper MT-8200-49A is manufactured by Fluke Networks. Valley Instrument Service is an authorized Fluke Networks dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| General | General specifications |
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage temperature | -4 °F to +140°F (-20 °C to °C) |
| Operating relative humidity (% RH without condensation) | 95 % (50 °F to 95 °F; 10 °C to 35 °C)75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C) |
| Vibration | Random, 2 g, 5 Hz-500 Hz |
| Shock | 1 m drop test |
| Safety | EN 61010-1, Category: None |
| Altitude | 3000 m |
| EMC | EN 61326-1, FCC Part 15 B |
| Battery type and life | 9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical |
| Applications | Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200. |
| Dimensions | 8.73 x 1.88 x 1.26 in (22.2 x 4.8 x 3.2 cm) |
| Display | (8) LED indicators, Sync LED indicator |
| Audio | IntelliTone: Microprocessor controlled audio filesAnalog: Detected toner signal |
| Control | Thumbwheel switch, volume control wheel |
| Tone detection | Detects IntelliTone™ digital signal for Locate, Isolate, and Cable MapDetects analog SmartTone signal (500-1200Hz) and other analog toners. |
| Toner interface | Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling. |
| Auto power down | Turns off automatically after 1 hour of inactivity |
This product is part of a family with 3 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
MT-8200-63A | $229.23 | View Details → |
MT-8200-49ACurrent | $179.96 | Viewing |
MT-8200-61-TNR | $244.23 | View Details → |
Related Products

Accessory-1-Toner
Accessory-1-Toner

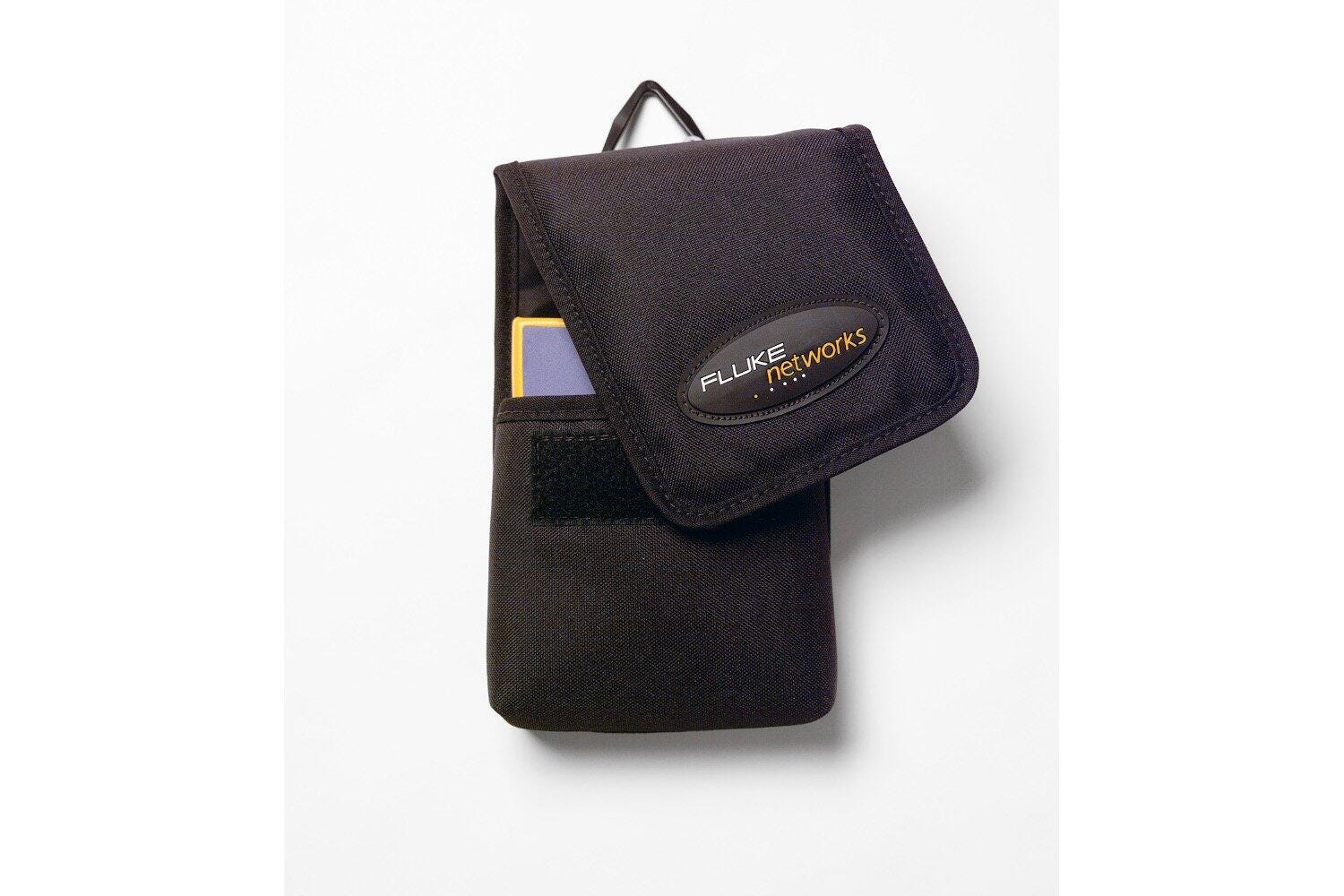

MT-8202-05 IntelliTone Toner/Probe Carrying Case
Carrying case for the Fluke Networks IntelliTone toner and probe.

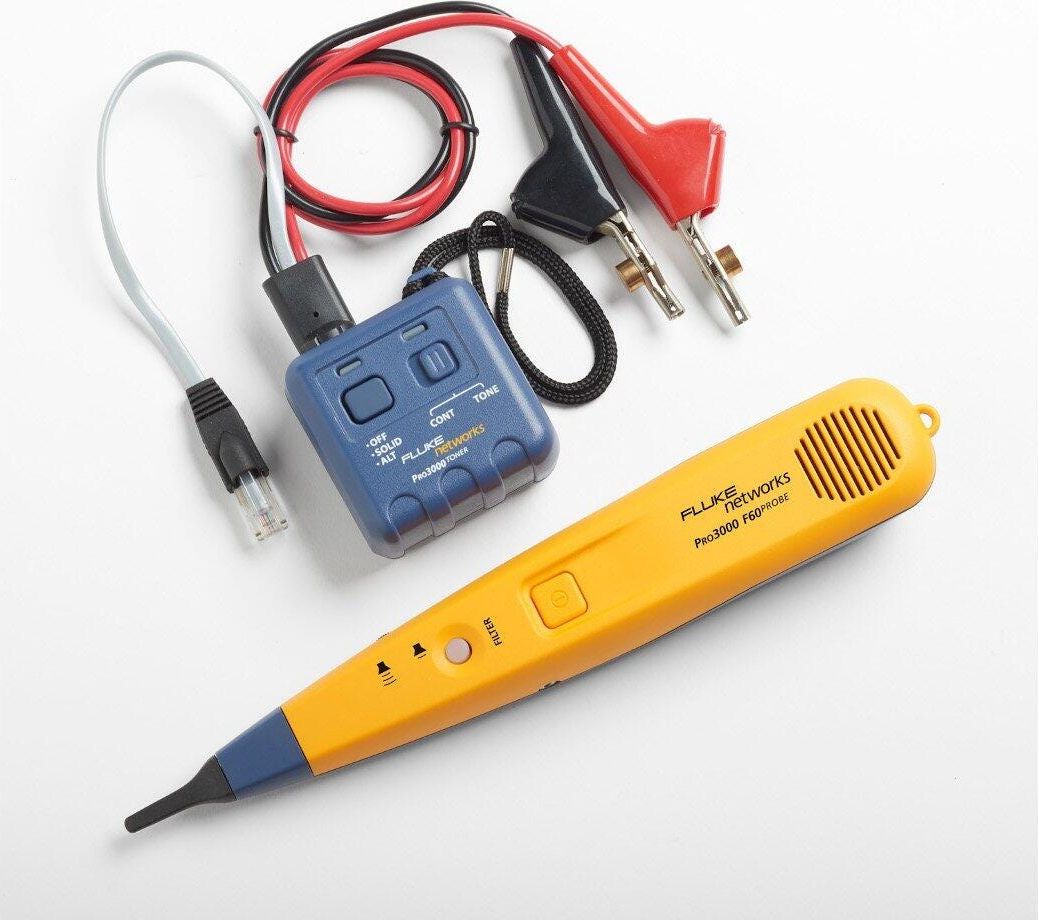

PRO3000F Probe with 60 Hz Filter & Tone Generator
