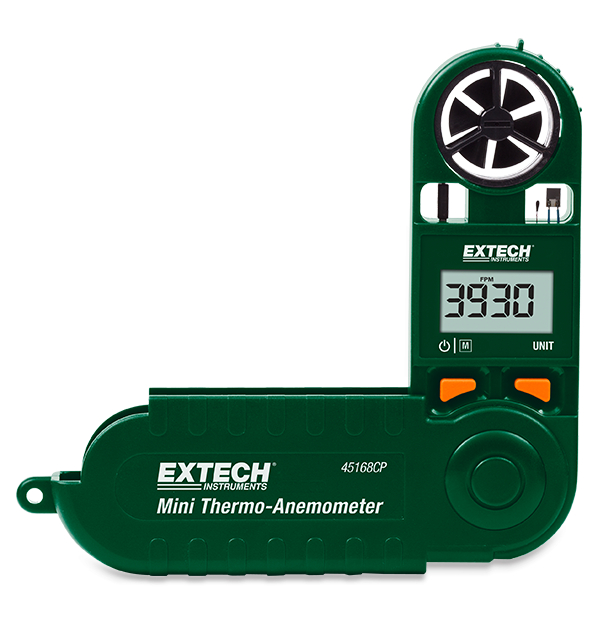

45168CP Thermo-Anemometer Mini with Compass
SKU: 45168CP
The Extech 45168CP is a Mini Thermo-Anemometer which measures windspeed in ft/min, MPH, m/s, km/h, knots and in beaufort force with 10 second averaging function. Additional measurements include temperature, relative humidity, dew point, wet bulb, and windchill. The built-in compass provides wind direction and 360° readings, plus it has an easy-to-use calibration procedure for improved accuracy. Its water resistant housing floats and drop-tested to 1.8 m (6 ft). Featuring a replaceable, non-corrosive, plastic wind vane (impeller) and a tripod mount for hands free use. Complete with a CR2032 battery and a lanyard.
List price. Volume pricing available.
The Extech 45168CP is a Mini Thermo-Anemometer which measures windspeed in ft/min, MPH, m/s, km/h, knots and in beaufort force with 10 second averaging function. Additional measurements include temperature, relative humidity, dew point, wet bulb, and windchill. The built-in compass provides wind direction and 360° readings, plus it has an easy-to-use calibration procedure for improved accuracy. Its water resistant housing floats and drop-tested to 1.8 m (6 ft). Featuring a replaceable, non-corrosive, plastic wind vane (impeller) and a tripod mount for hands free use. Complete with a CR2032 battery and a lanyard.
The Extech 45168CP Thermo-Anemometer Mini with Compass # 45168CP is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Air Velocity (ft/min) | 60 to 3937 ft/min |
| Air Velocity (ft/min) Basic Accuracy | ±(3% of reading + 40 ft/min) |
| Air Velocity (ft/min) Max Resolution | 2 ft/min |
| Air Velocity (km/h) | 0.8 to 72.0 km/h |
| Air Velocity (km/h) Basic Accuracy | ±(3% of reading + 1.4 km/h) |
| Air Velocity (km/h) Max Resolution | 0.1 km/h |
| Air Velocity (knots) | 0.4 to 38.8 knots |
| Air Velocity (knots) Basic Accuracy | ±(3% of reading + 0.6 knots) |
| Air Velocity (knots) Max Resolution | 0.1 knots |
| Air Velocity (m/s) | 1.1 to 20 m/s |
| Air Velocity (m/s) Basic Accuracy | ±(3% of reading + 0.2 m/s) |
| Air Velocity (m/s) Max Resolution | 0.1 m/s |
| Air Velocity (mph) | 0.5 to 44.7 MPH |
| Air Velocity (mph) Basic Accuracy | ±(3% of reading + 0.4 MPH) |
| Air Velocity (mph) Max Resolution | 0.1 MPH |
| Beaufort Wind Force | 1 to 8 BF |
| Beaufort Wind Force Basic Accuracy | ±1 BF |
| Beaufort Wind Force Max Resolution | 1 BF |
| Compass | 0 to 360° |
| Compass Basic Accuracy | ±2° |
| Compass Max Resolution | 1° |
| Dew Point | -4 °F to 122 °F (-20 to 50 °C) |
| Dew Point Max Resolution | 0.1 ° |
| Relative Humidity | 0.1% to 99.9% |
| Relative Humidity Basic Accuracy | ±3% |
| Relative Humidity Max Resolution | 0.10% |
| Temperature (Air) | 5 to 122 °F (-15 to 50 °C) |
| Temperature (Air) Basic Accuracy | ±1.8 °F/1 °C |
| Temperature (Air) Max Resolution | 0.1 ° |
| Wet Bulb | 23 °F to 122 °F (-5 to 50 °C) |
| Wet Bulb Max Resolution | 0.1 ° |
| Certifications | CE |
| Dimensions | 5.51 × 1.77 × 0.98" (140 × 45 × 25mm) |
| Power | 1 × CR2032 (1.5V) lithium battery |
| Warranty | 2 years |
| Weight | 3oz (95g) |
