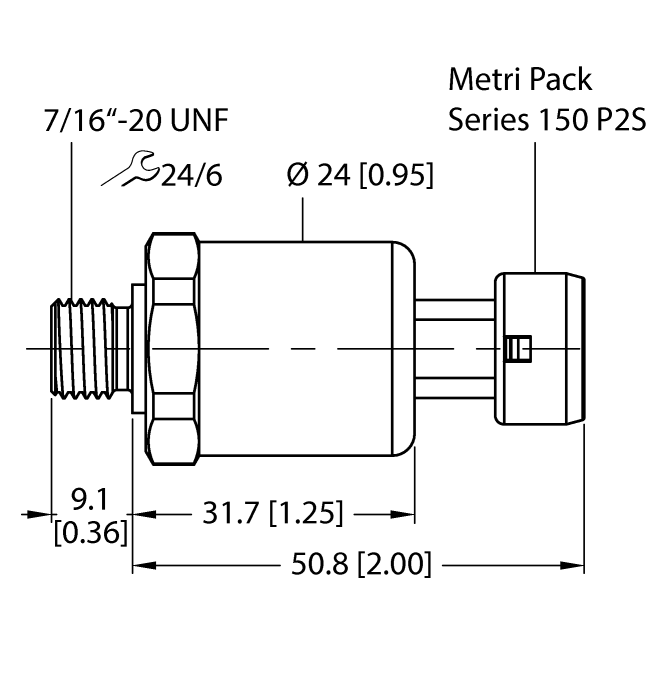

Pressure Transmitter - With Voltage Output (3-Wire)
SKU: PT300PSIG-1105-U3-MP11
0…300 psi · 7/16″-20 UNF male thread · Voltage output (3-wire) · 7…33 VDC
$194.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Pressure Transmitter — With Voltage Output (3-Wire)
- For mobile hydraulic applications
- Ceramic measuring cell
- Compact and robust design
- Excellent EMC properties
- Excellent accuracy and long-term stability
- Complies with ISO 16750-2
- Pressure range 0…300 psi rel.
- 7…33 VDC
- Analog output 0…5 V
- Process connection 7/16" UNF (SAE) male thread
- Plug-in device, Metri Pack 150 P2S series
The Turck Pressure Transmitter - With Voltage Output (3-Wire) # PT300PSIG-1105-U3-MP11 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101507607 |
| eCl@ss-Code (V5.1.4) | 27200614 -/- Piezoresistive sensor (absolute and relative pressure) |
| Customs tariff number | 9026204000 |
| Country of origin | DE |
| Weight | 81 g |
| Design | Without display |
| Process connection | 7/16″-20 UNF male thread |
| Pressure type | Relative pressure |
| Pressure range bar | 0…20.68 bar |
| Pressure range psi | 0…300 psi |
| Operating voltage | 7…33 VDC |
| Electrical output | Voltage output (3-wire) |
| Voltage output | 0…5 V |
| Electrical connection | Connector, Metri Pack 150 P2S series |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0 |
| Material pressure transducer | Ceramic Al₂O₃ |
| Medium temperature | -40…+125 °C |
| Ambient temperature | -40…+100 °C |
| Protection class | IP67 |
This product is part of a family with 126 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
PT1VR-1001-I2-H1143 | $194.70 | View Details → |
PT1VR-1001-U1-H1141 | $194.70 | View Details → |
PT1VR-1001-U1-H1143 | $194.70 | View Details → |
PT1VR-1121-U6-DT043P | $194.70 | View Details → |
PT1VR-1001-IOL-H1141 | $243.40 | View Details → |
PT1VR-1013-IOL-H1141 | $243.40 | View Details → |
PT1VR-1003-IOL-H1141 | $251.80 | View Details → |
PT0.05V-1503-I2-H1143/D840 | $429.10 | View Details → |
PT0.2V-1003-I2-H1143 | $194.70 | View Details → |
PT0.2V-1004-I2-H1143 | $194.70 | View Details → |
