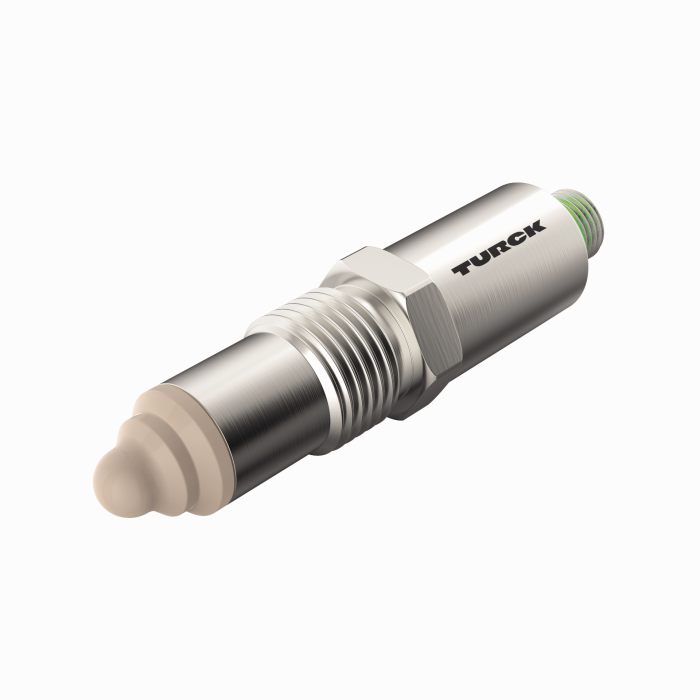

Capacitive Limit Level Sensor
SKU: NCLS-30-UN6X-H1141
G 1/2″ · NO/NC, NPN · Connector, M12 × 1
$357.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Capacitive Limit Level Sensor
- Media-contacting detection of limit levels in tanks and pipes
- Detection of different substances (liquid, viscous, granular, powder form)
- Hygienic PEEK tip, CIP/SIP compatible
- EHEDG certified (with NCLS-WA1 process adapter)
- Highly visible ring LED
- 12…32 VDC, power consumption: typically 1 W, max. 3 W
- Two digital outputs, separately adjustable as NO/NC
- PNP, NPN or push-pull, switchable
- IO-Link for parameterization/process values
- Process connection G1/2" male thread, hygienic (in combination with TURCK adapters)
- 4-pin connector device, M12 × 1
The Turck Capacitive Limit Level Sensor # NCLS-30-UN6X-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101496741 |
| eCl@ss-Code (V5.1.4) | 27270102 -/- Capacitive proximity switch |
| Customs tariff number | 9026204000 |
| Country of origin | DE |
| Weight | 146 g |
| Function | Level detection |
| Design | Threaded barrel |
| Construction size | G 1/2″ |
| Operating voltage | 12…32 VDC |
| Output function | NO/NC, NPN |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Ambient temperature | -10…+70 °C |
| Protection class | IP67/IP69K |
| Approvals | CE, EHEDG |
