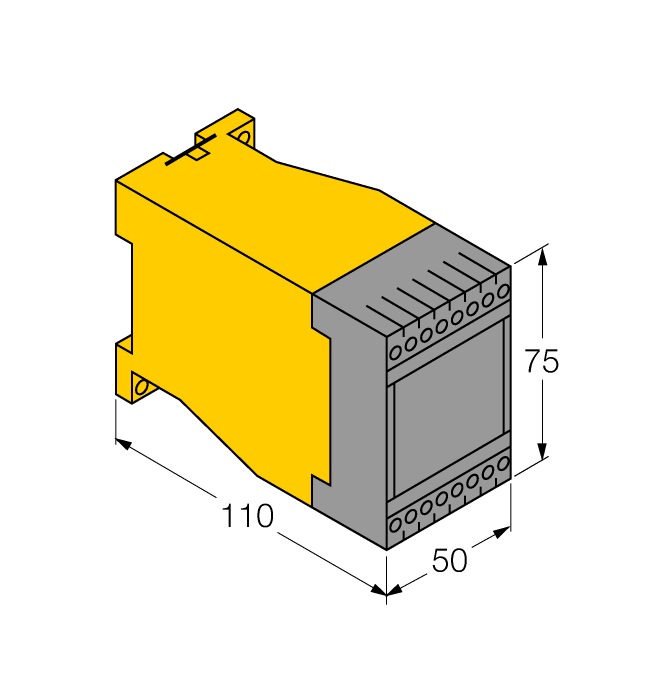

Processor Unit - For the Connection of FCS Product Series Non-Ex Flow Sensors
SKU: MS96-12R/24VDC
Signal processor
$581.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Processor Unit — For the Connection of FCS Product Series Non-Ex Flow Sensors
- For connection of a standard flow sensor
- Adjustment via potentiometer
- 6 LEDs for display of the flow state
- Temperature monitoring adjustable -20…+100 °C
- Switch-off delay adjustable 0…25 s
- Wire-break monitoring
- 19…29 VDC
- 2 relay outputs for flow and temperature
The Turck Processor Unit - For the Connection of FCS Product Series Non-Ex Flow Sensors # MS96-12R/24VDC is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101171129 |
| eCl@ss-Code (V5.1.4) | 27250312 -/- Communication interface, active |
| Customs tariff number | 8536504000 |
| Country of origin | CH |
| Weight | 249 g |
| Design | Signal processor |
| Operating voltage | 19…29 VDC |
| Output function | Complementary contact, Relay output |
| Electrical connection | Terminal chamber |
| Housing material | Plastic, Polycarbonate/ABS |
| Ambient temperature | -20…+60 °C |
| Protection class | IP20 |
