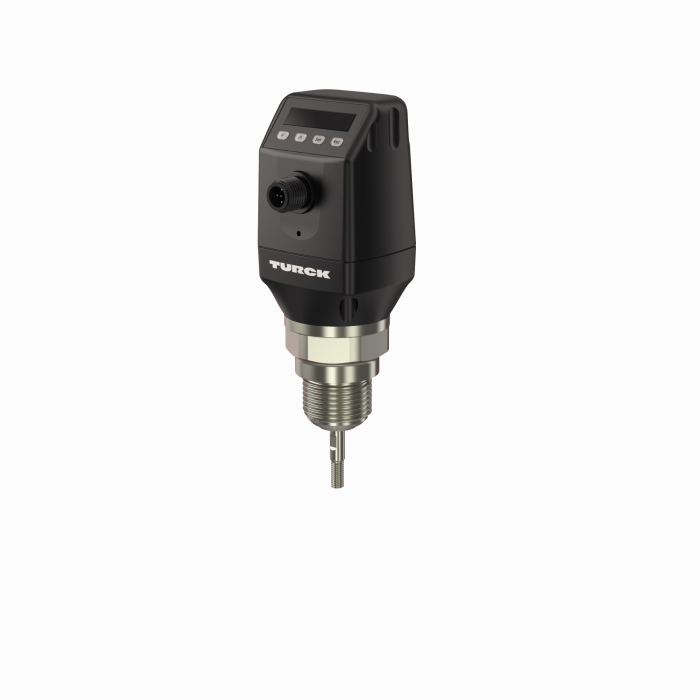

Level Sensor - With Analog Output and 4 × Switching Outputs

Level Sensor — With Analog Output and 4 × Switching Outputs

• Multiple output signals: one system for both level detection and continuous level monitoring
• Low maintenance and quick commissioning without calibration
• High flexibility due to cutable probe
• Compact, rotatable display housing ensures easy installation
• Small inactive areas, ideal for small containers
• Process temperature to 212 °F
• Process pressure up to 145 psi
• Coaxial tubes available for non-metallic tanks
• IO-Link 1.1
• 12…30 VDC
• 1 × analog output 4… 20 mA/0… 10 V (automatic switchover depending on load)
• 1 × transistor output (PNP) or IO-Link
• 3 × transistor output (PNP/NPN switchable)
• Dielectric constant: ≥ 5 for mono-rod probe/rope probe or ≥ 1.8 with coaxial tube

The Turck Level Sensor - With Analog Output and 4 × Switching Outputs # LS-534-0000-LIU24PN8X-H1181 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
