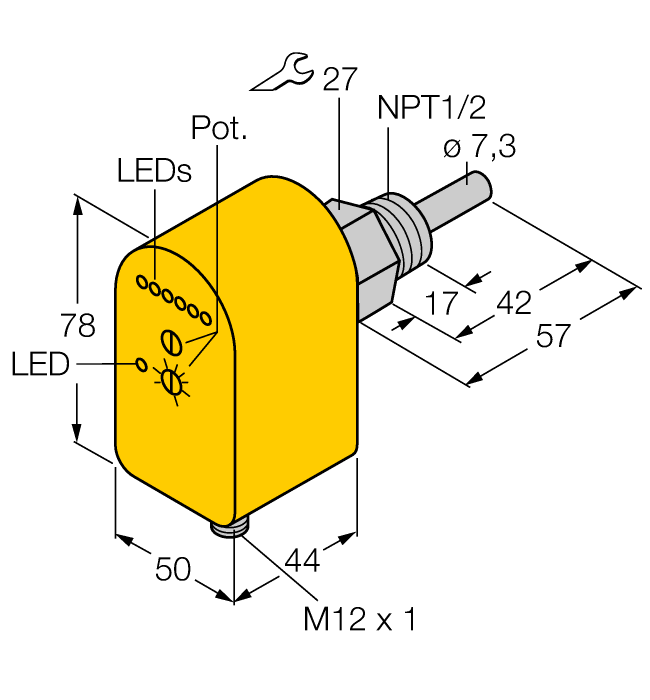

Flow Monitoring - Immersion Sensor with Integrated Processor
SKU: FTCS-N1/2A4P-2AP8X-H1140
Flow monitoring · liquids · Immersion · 1/2″ NPT
$739.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Flow Monitoring — Immersion Sensor with Integrated Processor
- Sensor for liquid media
- Calorimetric principle
- Adjustment via potentiometer
- Status indicated via LED chain
- Temperature monitoring, 0…+80 °C
- 2 independent switching outputs: S1: Flow monitoring, S2: Temperature monitoring
- DC 4-wire, 21…26 VDC
- NO contact, PNP output
- Connector device, M12 × 1
The Turck Flow Monitoring - Immersion Sensor with Integrated Processor # FTCS-N1/2A4P-2AP8X-H1140 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101171686 |
| eCl@ss-Code (V5.1.4) | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 8536504000 |
| Country of origin | CN |
| Weight | 427 g |
| Function | Flow monitoring |
| Design | Immersion |
| Process connection | 1/2″ NPT |
| Medium | liquids |
| Detection type | Calorimetric |
| Operating voltage | 19.2…28.8 VDC |
| Output function | 2 x NO contact, PNP |
| Electrical connection | Connector, M12 × 1 |
| Sensor material | Stainless steel |
| Housing material | Plastic, PBT |
| Medium temperature | -20…+80 °C |
| Protection class | IP67 |
