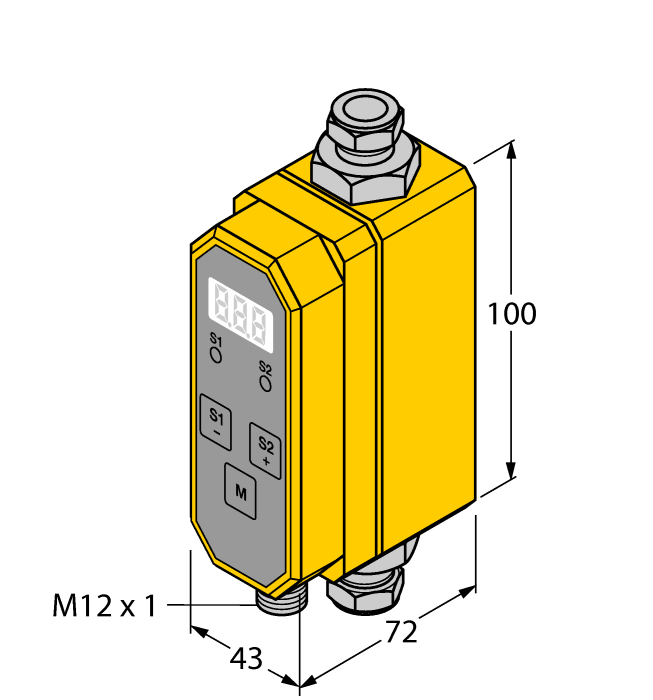

Flow Rate Monitoring - Inline Sensor with Integrated Processor
SKU: FTCI-3/8D10A4P-2LIX-H1141
Flow Rate Monitoring — Inline Sensor with Integrated Processor
$1,199.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Flow Rate Monitoring — Inline Sensor with Integrated Processor
- Compact inline flow sensor
- Calorimetric principle
- Monitoring of flow rate
- Monitoring of the medium temperature
- For water/glycol mix
- Parametrized via button
- Protected by software code
- Output flow 4…20 mA, linear
- Output temperature 4…20 mA, linear
- DC 4-wire, 21.6…26.4 VDC
- 4…20 mA analog output
- Plug-in device, M12 x 1
The Turck Flow Rate Monitoring - Inline Sensor with Integrated Processor # FTCI-3/8D10A4P-2LIX-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101046793 |
| eCl@ss-Code (V5.1.4) | 27200403 -/- Flow meter (mass, thermal) |
| Customs tariff number | 9026104000 |
| Country of origin | DE |
| Weight | 625 g |
| Function | Flow rate measurement |
| Design | Inline |
| Process connection | 3/8'' Swagelok |
| Medium | liquids |
| Detection type | Calorimetric |
| Operating voltage | 21.6…26.4 VDC |
| Output function | Analog output |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 x 1 |
| Sensor material | Stainless steel |
| Housing material | Plastic, PBT |
| Medium temperature | -10…+90 °C |
| Ambient temperature | 0…+60 °C |
| Protection class | IP65 |
