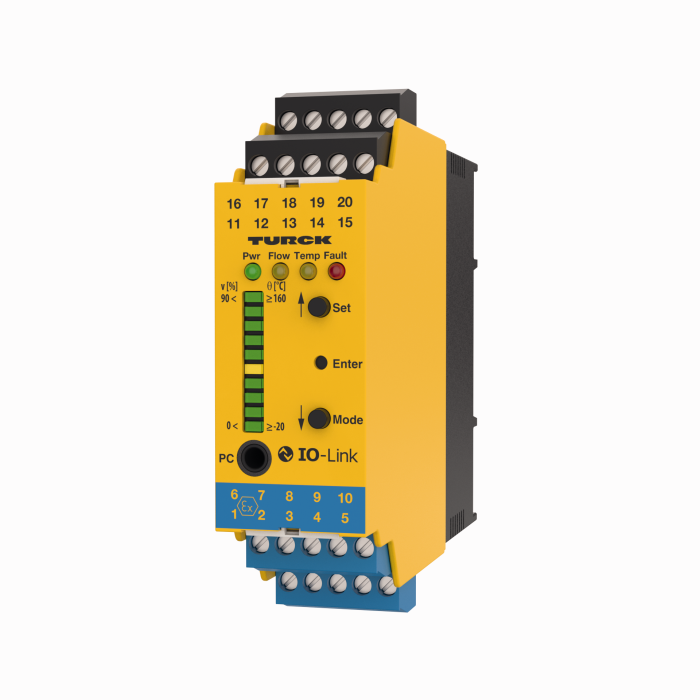

Processor Unit - For the Connection of FCS/FCI Product Series Ex Flow Sensors (NAEX)
SKU: FMX-IM-3UP63X
Flow monitoring · Signal processor
$952.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Processor Unit — For the Connection of FCS/FCI Product Series Ex Flow Sensors (NAEX) — IO-Link Device with Transistor Switching Outputs
- For Ex ia resp. Ex ib sensors
- Transistor outputs for flow, temperature and faults
- Adjustment of switchpoint, no teaching of flow boundaries (QuickTeach)
- LED band for indication of flow speed and media temperature
- Monitoring of operating and display range
- Detection of wire-break and short-circuit on the sensor side
- Standard IO or IO-Link operating mode
- Parametrized via pushbutton or software-supported via IO-Link
- Associated equipment [Ex ia Ga/Da]
- Connection of flow probes Zone 0/20
The Turck Processor Unit - For the Connection of FCS/FCI Product Series Ex Flow Sensors (NAEX) # FMX-IM-3UP63X is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101260540 |
| eCl@ss-Code (V5.1.4) | 27250312 -/- Communication interface, active |
| Customs tariff number | 85371091990 |
| Country of origin | DE |
| Weight | 231 g |
| Function | Flow monitoring |
| Design | Signal processor |
| Operating voltage | 20…30 VDC |
| Output function | NO/NC programmable, PNP |
| Communication protocol | IO-Link |
| Electrical connection | Terminal block |
| Housing material | Plastic, Polycarbonate/ABS |
| Ambient temperature | -25…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, KOSHA, cULus, IECEx |
