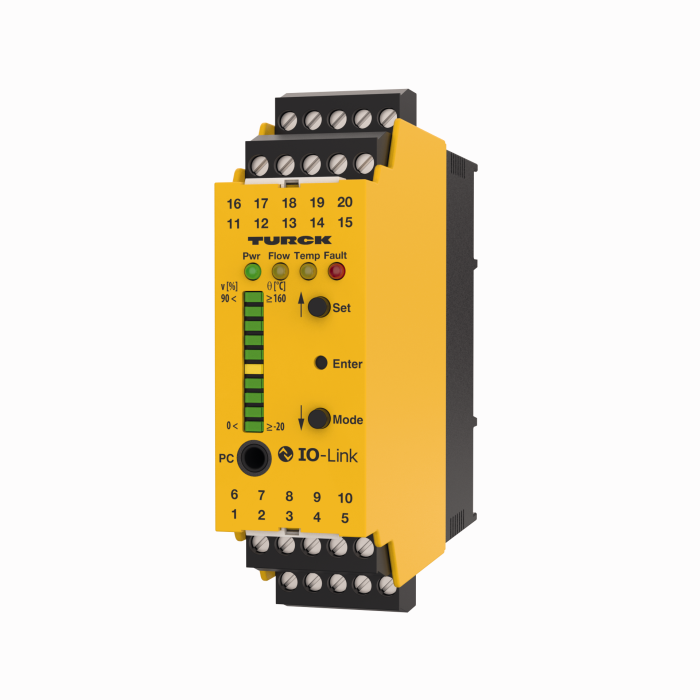

Processor Unit - For the Connection of FCS and FCI Product Series Flow Sensors
SKU: FM-IM-3UR38X
Flow monitoring · Signal processor
$617.60
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Processor Unit — For the Connection of FCS and FCI Product Series Flow Sensors — IO-Link Device with Relay Switching Outputs
- Relay output for flow, temperature and faults
- Adjustment of switchpoint, no teaching of flow boundaries (QuickTeach)
- LED band for indication of flow speed and media temperature
- Monitoring of operating and display range
- Detection of wire-break and short-circuit on the sensor side
- Standard IO or IO-Link operating mode
- Parametrized via pushbutton or software-supported via IO-Link
The Turck Processor Unit - For the Connection of FCS and FCI Product Series Flow Sensors # FM-IM-3UR38X is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101260557 |
| eCl@ss-Code (V5.1.4) | 27250312 -/- Communication interface, active |
| Customs tariff number | 85371091990 |
| Country of origin | DE |
| Weight | 241 g |
| Function | Flow monitoring |
| Design | Signal processor |
| Operating voltage | 20…250 VAC / 20…125 VDC |
| Output function | NO/NC programmable, Relay output |
| Communication protocol | IO-Link |
| Electrical connection | Terminal block |
| Housing material | Plastic, Polycarbonate/ABS |
| Ambient temperature | -25…+70 °C |
| Protection class | IP20 |
| Approvals | UL |
