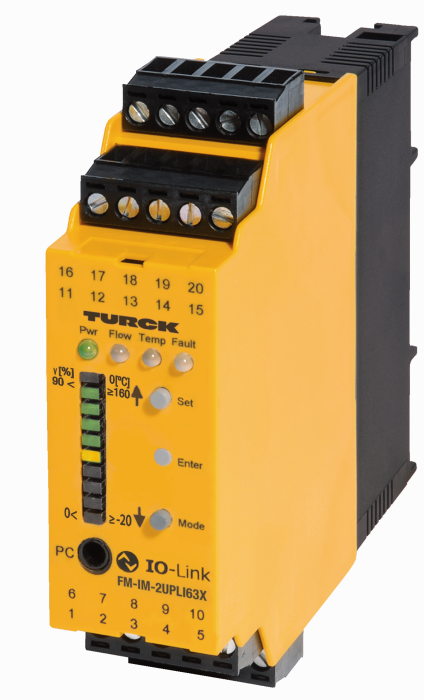

Processor Unit - For the Connection of FCS and FCI Product Series Flow Sensors
SKU: FM-IM-2UPLI63X
Flow monitoring · Signal processor
$519.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Processor Unit — For the Connection of FCS and FCI Product Series Flow Sensors — IO-Link Device with Current and Transistor Switching Outputs
- Analog output for flow
- Transistor switching outputs for temperature and faults
- Teaching upper and lower flow limit
- LED band for indication of flow rate and media temperature
- Monitoring of operating and display range
- Detection of wire-break and short-circuit on the sensor side
- Standard IO or IO-Link operating mode
- Parametrized via pushbutton or software-supported via IO-Link
The Turck Processor Unit - For the Connection of FCS and FCI Product Series Flow Sensors # FM-IM-2UPLI63X is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101260571 |
| eCl@ss-Code (V5.1.4) | 27250312 -/- Communication interface, active |
| Customs tariff number | 85371091990 |
| Country of origin | DE |
| Weight | 233 g |
| Function | Flow monitoring |
| Design | Signal processor |
| Operating voltage | 20…30 VDC |
| Output function | Analog output |
| Communication protocol | IO-Link |
| Electrical connection | Terminal block |
| Housing material | Plastic, Polycarbonate/ABS |
| Ambient temperature | -25…+70 °C |
| Protection class | IP20 |
| Approvals | UL |
