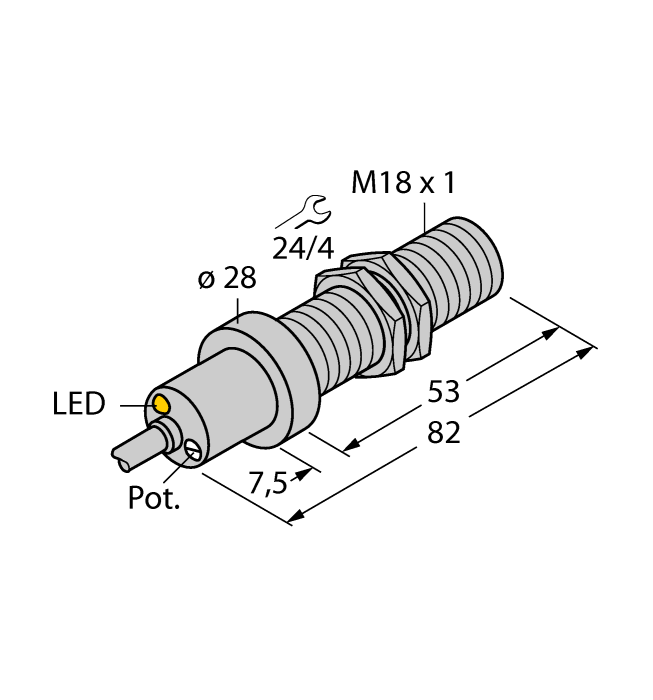

Flow Monitoring - Immersion Sensor with Integrated Processor
SKU: FCS-M18-AP8X/DO45
Flow monitoring · gases · Immersion · M18 × 1
$346.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Flow Monitoring — Immersion Sensor with Integrated Processor
- Sensor for gaseous media
- Calorimetric principle
- Adjustments via potentiometer
- Status display via 2-color LED
- Chrome-plated brass sensor
- With metal joint
- Marking of individual conductors
- 3‐wire DC, 19.2…28.8 VDC
- NO contact, PNP output
- Cable device
The Turck Flow Monitoring - Immersion Sensor with Integrated Processor # FCS-M18-AP8X/DO45 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101175264 |
| eCl@ss-Code (V5.1.4) | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 9026802000 |
| Country of origin | DE |
| Weight | 165 g |
| Function | Flow monitoring |
| Design | Immersion |
| Process connection | M18 × 1 |
| Medium | gases |
| Detection type | Calorimetric |
| Operating voltage | 19.2…28.8 VDC |
| Output function | NO contact, PNP |
| Electrical connection | Cable |
| Cable length (L) | 0.30 m |
| Sensor material | Brass |
| Housing material | Metal, CuZn |
| Medium temperature | -20…+70 °C |
| Ambient temperature | 0…+60 °C |
| Protection class | IP67 |
