Flow Monitoring - Immersion Sensor with Integrated Processor
SKU: FCS-HA2P-LIX-H1141/AL115
Flow monitoring · gases · Immersion · G 1” female thread DIN 3852
$904.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

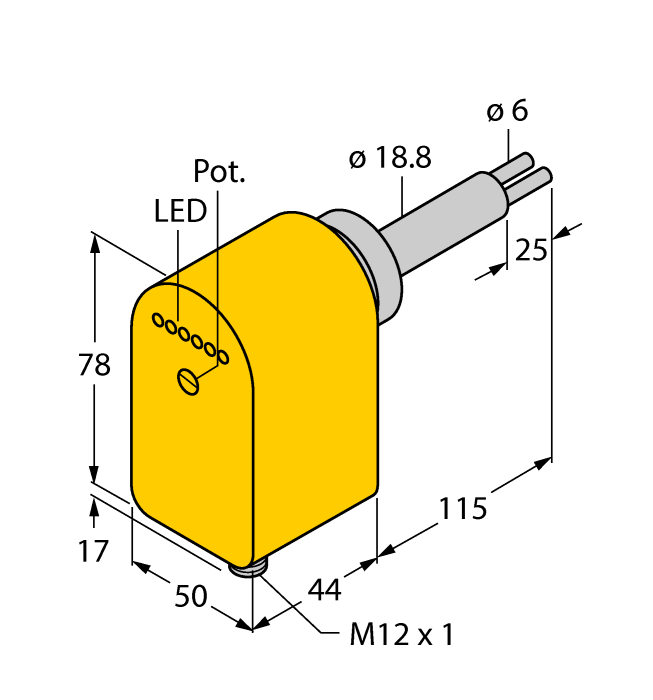

Flow Monitoring — Immersion Sensor with Integrated Processor
- Sensor for gaseous media
- Calorimetric principle
- Adjustments via potentiometer
- Sensor length 115 mm
- DC 3-wire, 19.2…28.8 VDC
- 4…20 mA analog output
- Connector device, M12 × 1
The Turck Flow Monitoring - Immersion Sensor with Integrated Processor # FCS-HA2P-LIX-H1141/AL115 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101175226 |
| eCl@ss-Code (V5.1.4) | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 8536507000 |
| Country of origin | CN |
| Weight | 583 g |
| Function | Flow monitoring |
| Design | Immersion |
| Process connection | G 1” female thread DIN 3852 |
| Medium | gases |
| Detection type | Calorimetric |
| Operating voltage | 19.2…28.8 VDC |
| Output function | Analog output |
| Current output | 4…20 mA |
| Electrical connection | Connector, M12 × 1 |
| Sensor material | Stainless steel |
| Housing material | Plastic, PBT |
| Medium temperature | -20…+80 °C |
| Protection class | IP67 |
| Approvals | UL |
