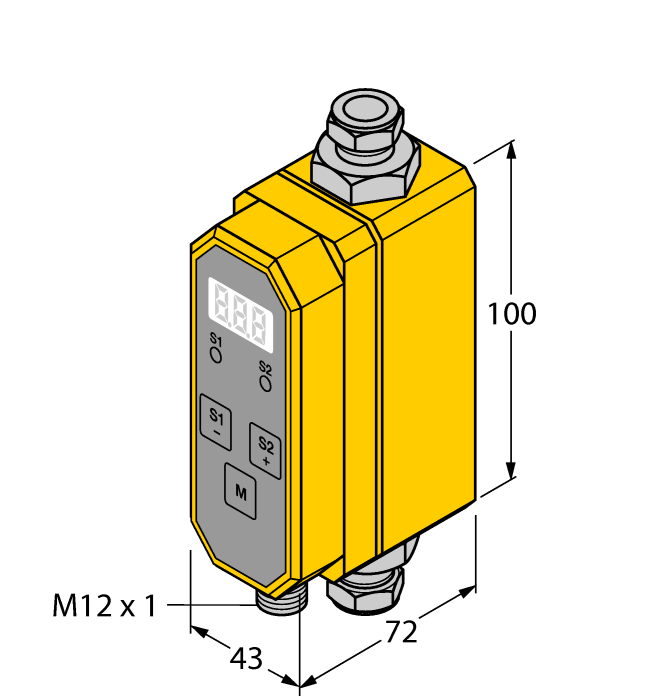

Flow Rate Measurement — Inline Sensor with Integrated Processor

• Programmable flow meter for electrically conductive liquids
• Magnetic-inductive principle
• Display and monitoring of flow
• 3-digit display [Gpm or l/min]
• Measuring accuracy 0…5.0 l/min: ±0.1 l/min
• Measuring accuracy 5.1…40.0 l/min: ±2 % of minimum value
• Minimum conductivity > 10 µS/cm (water > 15 µS/cm)
• Prog. via pushbutton, code-protected
• Unit can be set: Gallon (default) - Liter
• DC 4-wire, 21.6…26.4 VDC
• NO/NC prog., PNP output
• 4…20 mA analog output
• Analog output provides a current signal proportional to the flow rate for the overall operating range
• Plug-in device, M12 x 1

The Turck Flow Rate Measurement - Inline Sensor with Integrated Processor # FCMI-3/8D08DYA4P-LI-UP8X-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
