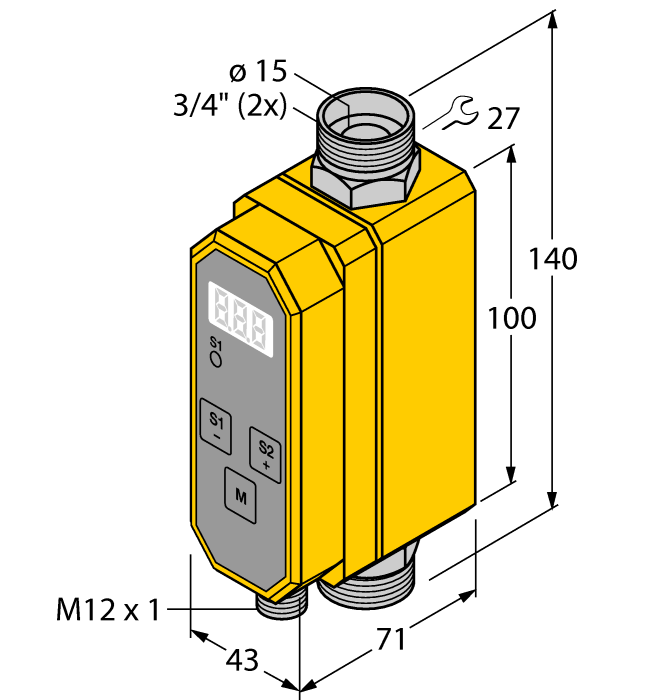

Flow Rate Measurement — Inline Sensor with Integrated Processor

• Programmable flow meter for electrically conductive liquids
• Magnetic-inductive principle
• Display and monitoring of flow
• 3-digit display [Gpm or l/min]
• Measuring accuracy 0…7.6 l/min: <+/‐0.37 l/min
• Measuring accuracy 7.7…75.7 l/min: < +/-2% of measured value
• Minimum conductivity > 20 µS/cm (water > 30 µS/cm)
• Prog. via pushbutton, code-protected
• Unit can be set: Gallon (default) - Liter
• DC 4-wire, 21.6…26.4 VDC
• NO/NC prog., PNP output
• 4…20 mA analog output
• Analog output provides a current signal proportional to the flow rate for the overall operating range
• Plug-in device, M12 x 1

The Turck Flow Rate Measurement - Inline Sensor with Integrated Processor # FCMI-3/4D12DYA4P-LIUP8X-H1141 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
