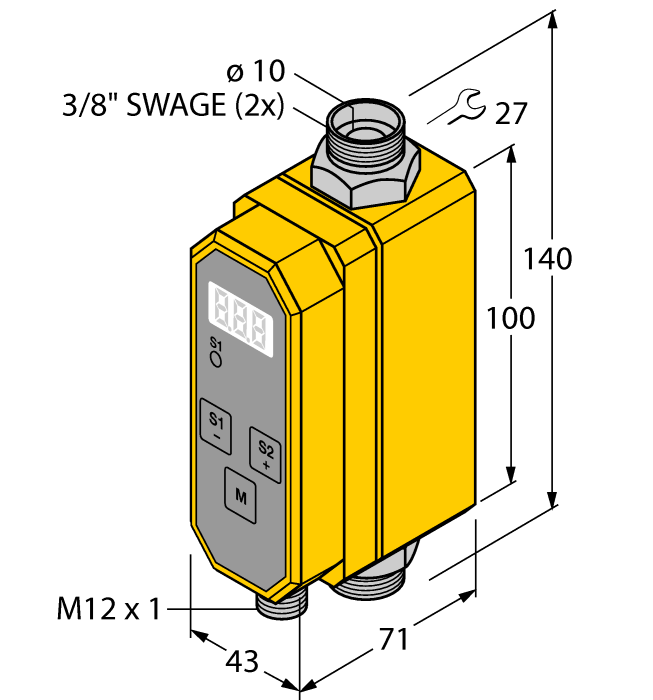

Flow Monitoring - Inline Sensor with Integrated Processor
SKU: FCI-D10A4P-2ARX-H1160/D203
Flow monitoring · liquids · Inline · 3/8'' Swagelok
$974.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Flow Monitoring — Inline Sensor with Integrated Processor — Relay Output 30 VDC, NO
- Sensor for deionized water
- Calorimetric functionality
- Alphanumeric 7-segment display
- Operating range 0.2…4 gpm
- 2 relay switching outputs
- Switching outputs 30 VDC/36 VAC, NO
- Freely adjustable switching points
The Turck Flow Monitoring - Inline Sensor with Integrated Processor # FCI-D10A4P-2ARX-H1160/D203 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101174991 |
| eCl@ss-Code (V5.1.4) | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 9026102040 |
| Country of origin | DE |
| Weight | 598 g |
| Function | Flow monitoring |
| Design | Inline |
| Process connection | 3/8'' Swagelok |
| Medium | liquids |
| Detection type | Calorimetric |
| Operating voltage | 21.6…26.4 VDC |
| Output function | NO contact, Relay output |
| Electrical connection | Connector, M12 × 1 |
| Sensor material | Stainless steel |
| Housing material | Plastic, POM |
| Medium temperature | -10…+95 °C |
| Ambient temperature | 0…+60 °C |
| Protection class | IP54 |
