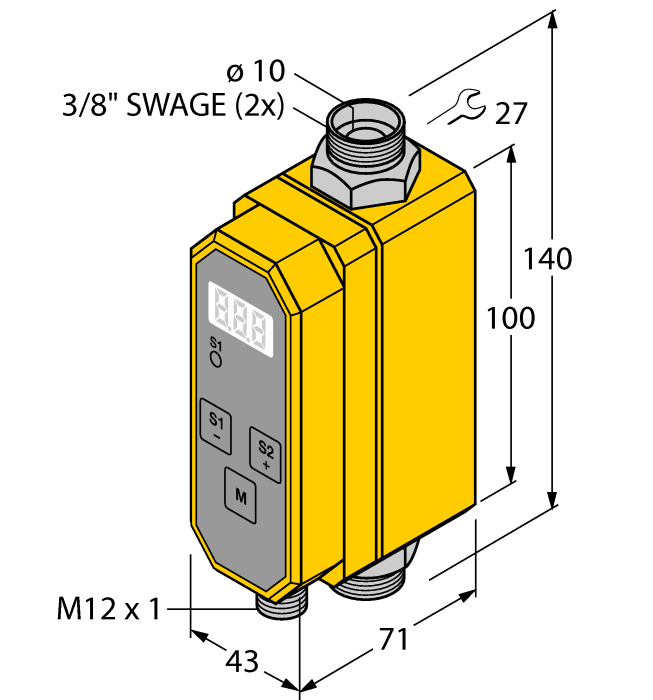

Flow Monitoring - Inline Sensor with Integrated Processor
SKU: FCI-D10A4P-2ARX-H1160/D201
Flow monitoring · liquids · Inline · 3/8'' Swagelok
$1,008.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Flow Monitoring — Inline Sensor with Integrated Processor — Relay Output 24 VDC NO
- Flow sensor for liquid media
- Calorimetric principle
- Adjustment via potentiometer
- LED band
- Operating range 0.8…15 l/min
- 2 relay switching outputs
- Switching outputs 24 VDC NO
- Switchpoints freely adjustable
The Turck Flow Monitoring - Inline Sensor with Integrated Processor # FCI-D10A4P-2ARX-H1160/D201 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101174984 |
| eCl@ss-Code (V5.1.4) | 27273190 -/- Flow meter (not classified) |
| Customs tariff number | 8536507000 |
| Country of origin | CN |
| Weight | 607 g |
| Function | Flow monitoring |
| Design | Inline |
| Process connection | 3/8'' Swagelok |
| Medium | liquids |
| Detection type | Calorimetric |
| Operating voltage | 21.6…26.4 VDC |
| Output function | NO contact, Relay output |
| Electrical connection | Connector, M12 × 1 |
| Sensor material | Stainless steel |
| Medium temperature | -10…+95 °C |
| Ambient temperature | -20…+60 °C |
| Protection class | IP65 |
