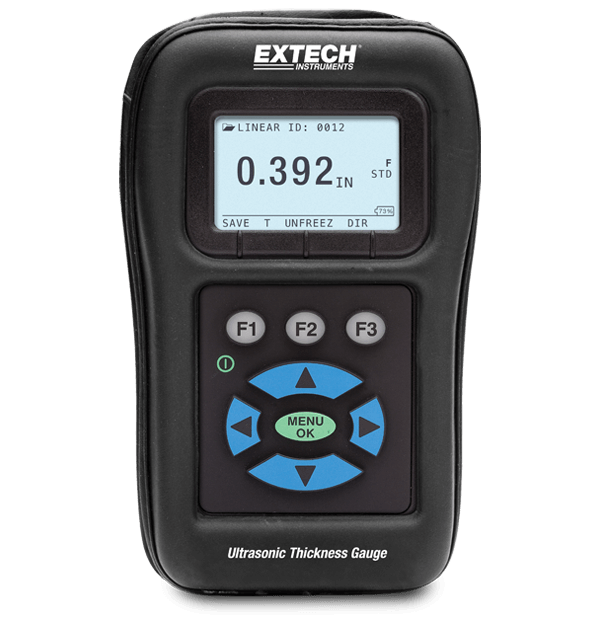

TKG150 Ultrasonic Thickness Gauge/Datalogger
SKU: TKG150
The Extech TKG150 is a Digital Ultrasonic Thickness Gauge/Data logger. The compact, rugged meter allows for non-destructive thickness measurements. It offers thickness gauges designed in compact, handheld, rugged housing which is ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. Complete with protective holster, 2 oz bottle of coolant, 2 AA batteries, 5 MHz transducer, hard carrying case, USB cable, and exporter software.
List price. Volume pricing available.
The Extech TKG150 is a Digital Ultrasonic Thickness Gauge/Data logger. The compact, rugged meter allows for non-destructive thickness measurements. It offers thickness gauges designed in compact, handheld, rugged housing which is ideal for field use. The ultrasonic technology allows for non-destructive thickness measurements for primarily steel structures. Complete with protective holster, 2 oz bottle of coolant, 2 AA batteries, 5 MHz transducer, hard carrying case, USB cable, and exporter software.
The Extech TKG150 Ultrasonic Thickness Gauge/Datalogger # TKG150 is manufactured by Extech. Valley Instrument Service is an authorized Extech dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Alarm | Audible beeping; illuminae flashing display and keypad; and vibration feedback |
| B-Scan (Cross Section) | Displays a visual cross section of inspection area with no correlation to distance |
| Differential Mode | Displays the difference from the actual thickness measurement and a user entered reference value |
| Echo to Echo | Measure the metal thickness only (paint and coatings do not affect base material thickness value) |
| Gain | Low, Standard, High |
| Material Velocity Calibration | 0.200 to 0.7362 in/µS (0.508 to 18.699mm/µS) |
| Memory | Stores 50k readings (expandable to 100k) and 5,000 waveforms |
| Steel Thickness | 5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm) |
| Velocity Mode | Displays acoustic sound speed to measure thickness of unknown materials |
| Certifications | CE |
| IP Rating | IP54 |
| Power | 2 × AA (1.5V) batteries |
| Warranty | 2 years |
Related Products

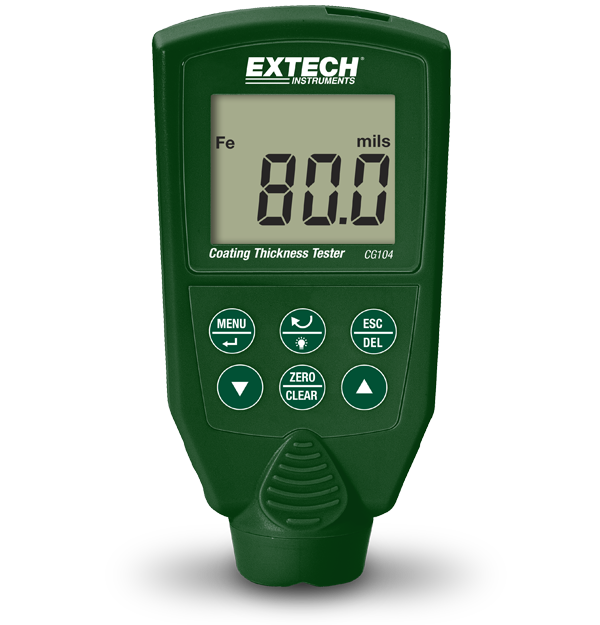

CG104 Ferrous and Non-Ferrous Coating Thickness Gauge
The CG104 is a pocket-sized coating thickness tester which offers quick one-handed operation and non-destructive measurements of the thickness of ferrous and non-ferrous substrates. Its unique reversible display allows you to take readings in challenging angles of area being measured, plus it has an easy-to use menu system and backlit display feature. Built-in memory stores/recalls up to 255 readings. Complete with two AAA batteries, calibration standards (one ferrous plate, one non-ferrous plate and one standard coating plate film), wrist strap and soft case.

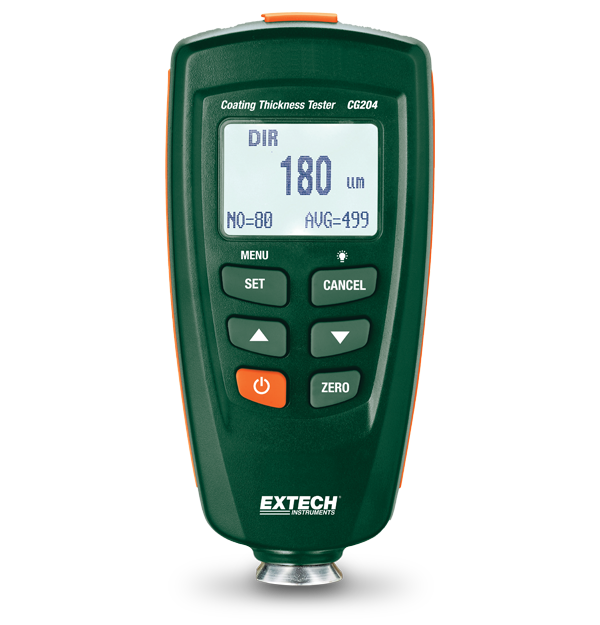

CG204 Coating Thickness Tester
The Extech CG204 is a portable meter designed for non-invasive coating thickness measurements with automatic recognition of ferrous and non-ferrous substrates. The tester uses dual technology to indicate ferrous (magnetic induction measurement) and non-ferrous (eddy current measurement) substrates. It features single and continuous measurement modes as well as direct and group working modes, 400-reading memory storage, and user-programmable high/low alarms. The CG204 comes with two AAA batteries, USB cable, software, calibration iron, calibration aluminum, precision standards, pouch case, and user manual.

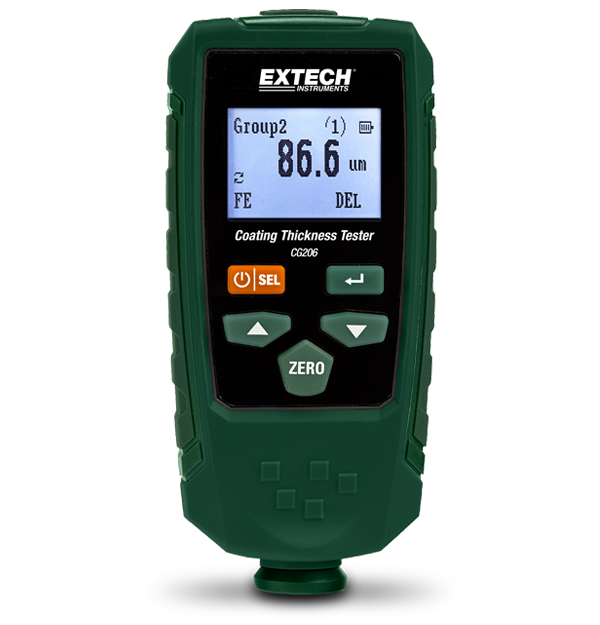

CG206 Coating Thickness Tester
Dual technology provides automatic recognition for ferrous and non-ferrous substrates without having you guess the material. Allows for quick, one-handed operation, non- destructive measurement of the coating thickness on various surfaces.

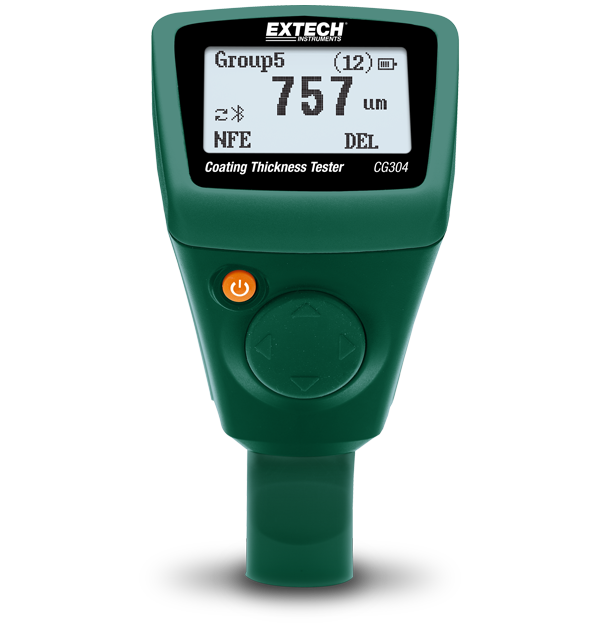

CG304 Coating Thickness Tester with Bluetooth
