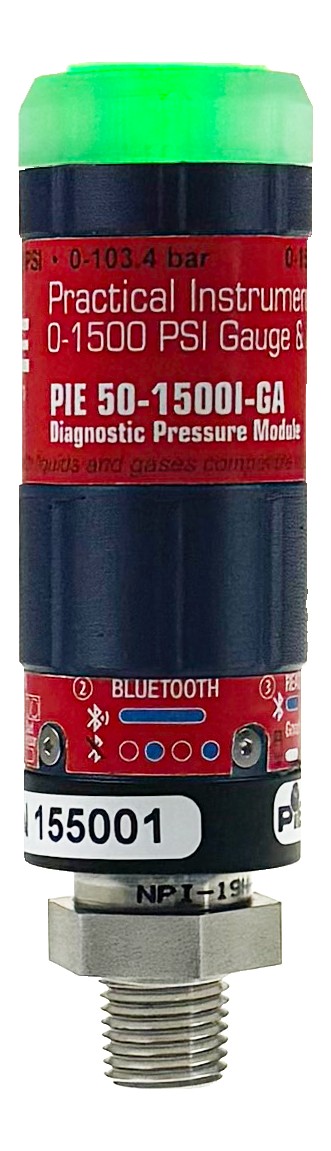

PM-50 Wireless Diagnostic Pressure Module, 0-1500 PSI
SKU: PIE-PM-50-1500i-GA
Ultra-compact Bluetooth-enabled diagnostic pressure module for the PIE 901 calibrator. Also connects by wired cable to the PIE 820Elite, 830, and 850. Isolated 316L stainless steel sensor with ±0.035% of span accuracy. 0–1500 PSI (0–103.4 bar) range.
List price. Volume pricing available.
Ultra-compact Bluetooth-enabled diagnostic pressure module for the PIE 901 calibrator. Also connects by wired cable to the PIE 820Elite, 830, and 850. Isolated 316L stainless steel sensor with ±0.035% of span accuracy. 0–1500 PSI (0–103.4 bar) range.
The PIE PM-50 Wireless Diagnostic Pressure Module, 0-1500 PSI # PIE-PM-50-1500i-GA is manufactured by PIE. Valley Instrument Service is an authorized PIE dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Pressure Range | 0–1500 PSI (0–103.4 bar) |
| Sensor Accuracy | ±0.035% of span |
| Atmospheric Accuracy | ±0.01 PSI |
| Sensor Wetted Materials | 316L stainless steel |
| Engineering Units | 32 selectable |
| Wireless Interface | Bluetooth (to PIE 901) |
| Wired Interface | Cable to PIE 820Elite / 830 / 850 |
| Self-Diagnostics | Patented — verifies functionality before use |
| Form Factor | Ultra-compact, lightweight, field-ready |
This product is part of a family with 5 models. Select a model below to view details.
| Model | Price | |
|---|---|---|
PIE-PM-50-1500i-GACurrent | $2,199.00 | Viewing |
PIE-PM-50-500i-GA | $2,199.00 | View Details → |
PIE-PM-50-300i-GA | $2,199.00 | View Details → |
PIE-PM-50-100i-GA | $2,199.00 | View Details → |
PIE-PM-50-30i-GA | $2,199.00 | View Details → |
