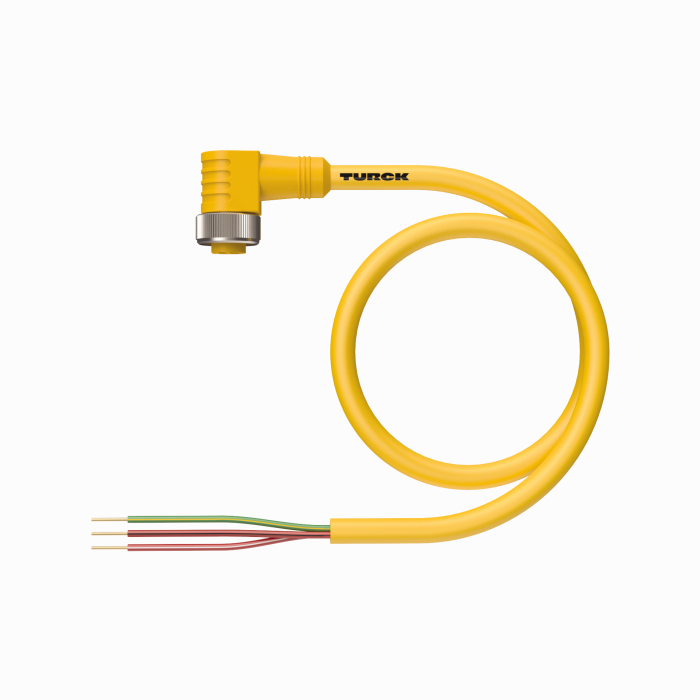

Actuator and Sensor Cable - Connection Cable
SKU: WKM 35-8M/S600
View all 8 variants in this family
9 A · CPE, Yellow · Brass, CuZn, Nickel-plated · Ø 10.31 mm
$127.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Actuator and Sensor Cable — Connection Cable
- 7/8" Female, Right-angle, 3-pin
- Flexible Service Cable
- Yellow CPE jacket, 3X16 AWG
- Sunlight Resistant
- -50 Cold Bend Rating
- Oil Resistant
- Flame Ratings: UL 1060, CSA FT1
The Turck Actuator and Sensor Cable - Connection Cable # WKM 35-8M/S600 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 8544429090 |
| Country of origin | MX |
| Weight | 1156.667 g |
| Application | Signal |
| Design | Single-ended |
| Connector A | Female, 7/8″-16 UN, Right angle |
| Number of contacts | 3 |
| Connector body | Plastic, TPU, Yellow |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Voltage | 600 V |
| Current | 9 A |
| Cable diameter | Ø 10.31 mm |
| Length (L) | 8.0 m |
| Cable jacket | CPE, Yellow |
| Number of Conductors | 3 |
| Protection class (When coupled) | IP67, IP68, IP69, IP69K |
| Special Features | Shielded |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, RoHS |
| Connector Series | 7/8" minifast |
