Washdown Cordset - Connection Cable
SKU: WD-RKV 40-10M
View all 7 variants in this family
9 A · TPV, White · Stainless Steel, CuZn, Passivated · Ø 6.2 mm
$121.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

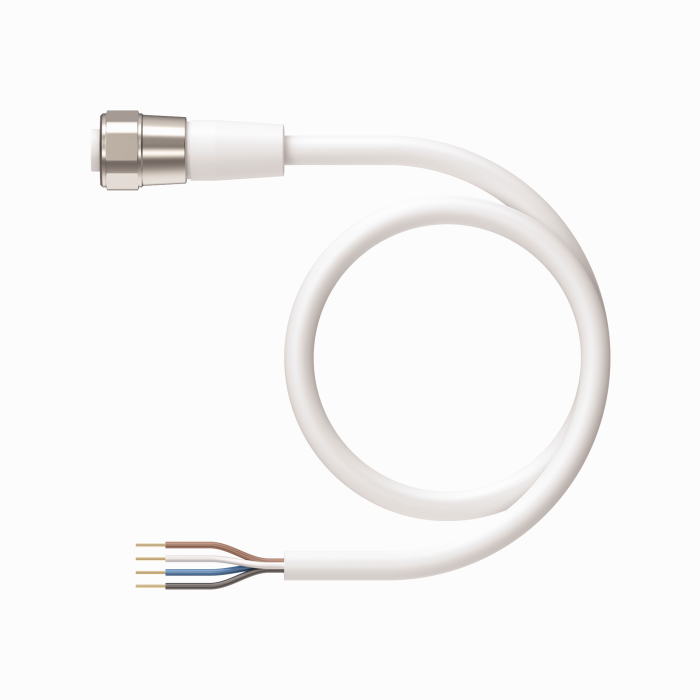

Washdown Cordset — Connection Cable
- 7/8” Female, Straight, 4-pin
- Washdown Cable
- White TPV jacket, 4X18 AWG
- -40 Cold Bend Rating
The Turck Washdown Cordset - Connection Cable # WD-RKV 40-10M is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8544429090 |
| Country of origin | MX |
| Weight | 1.1 g |
| Application | Washdown |
| Design | Single-ended |
| Connector A | Female, 7/8″-16 UN, Straight |
| Number of contacts | 4 |
| Connector body | Plastic, TPU, White |
| Coupling nut | Stainless Steel, CuZn, Passivated |
| Voltage | 300 V |
| Current | 9 A |
| Cable diameter | Ø 6.2 mm |
| Cable jacket | TPV, White |
| Number of Conductors | 4 |
| Protection class (When coupled) | IP67 |
| Approvals | RoHS |
| Connector Series | 7/8" minifast |
